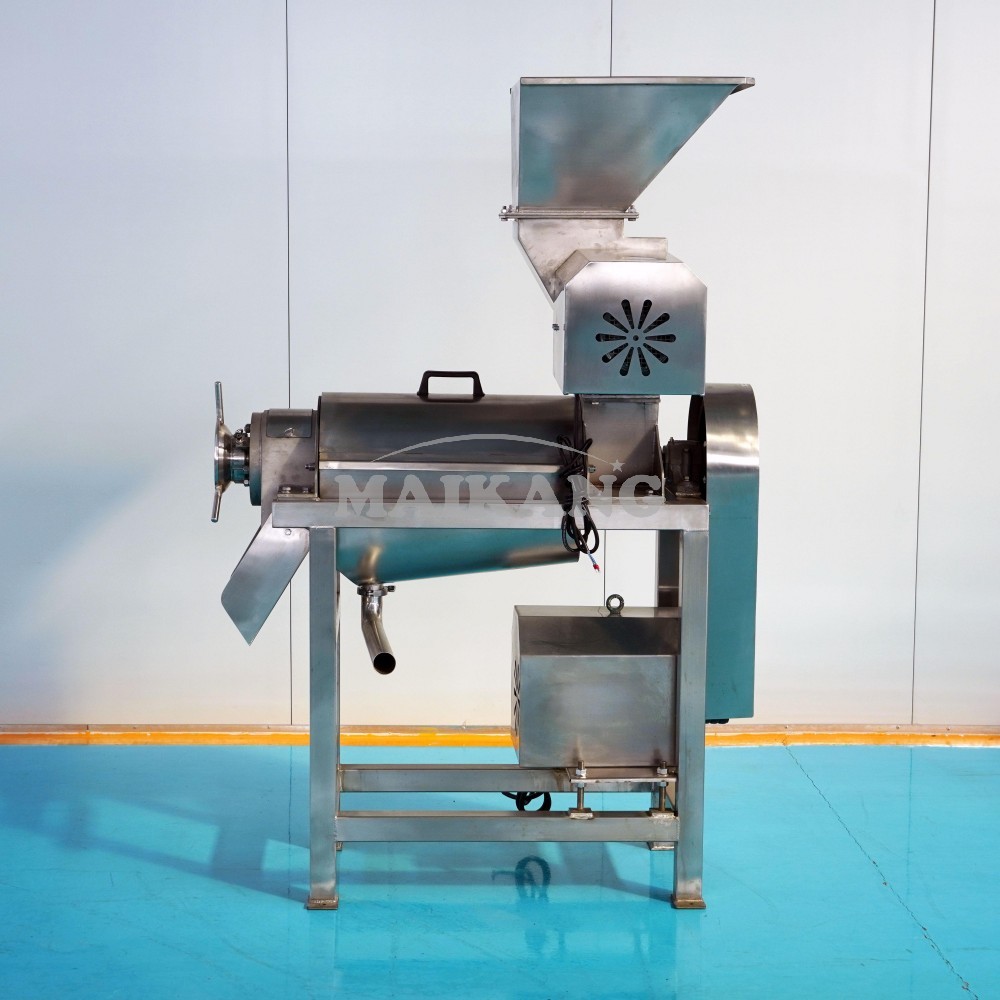

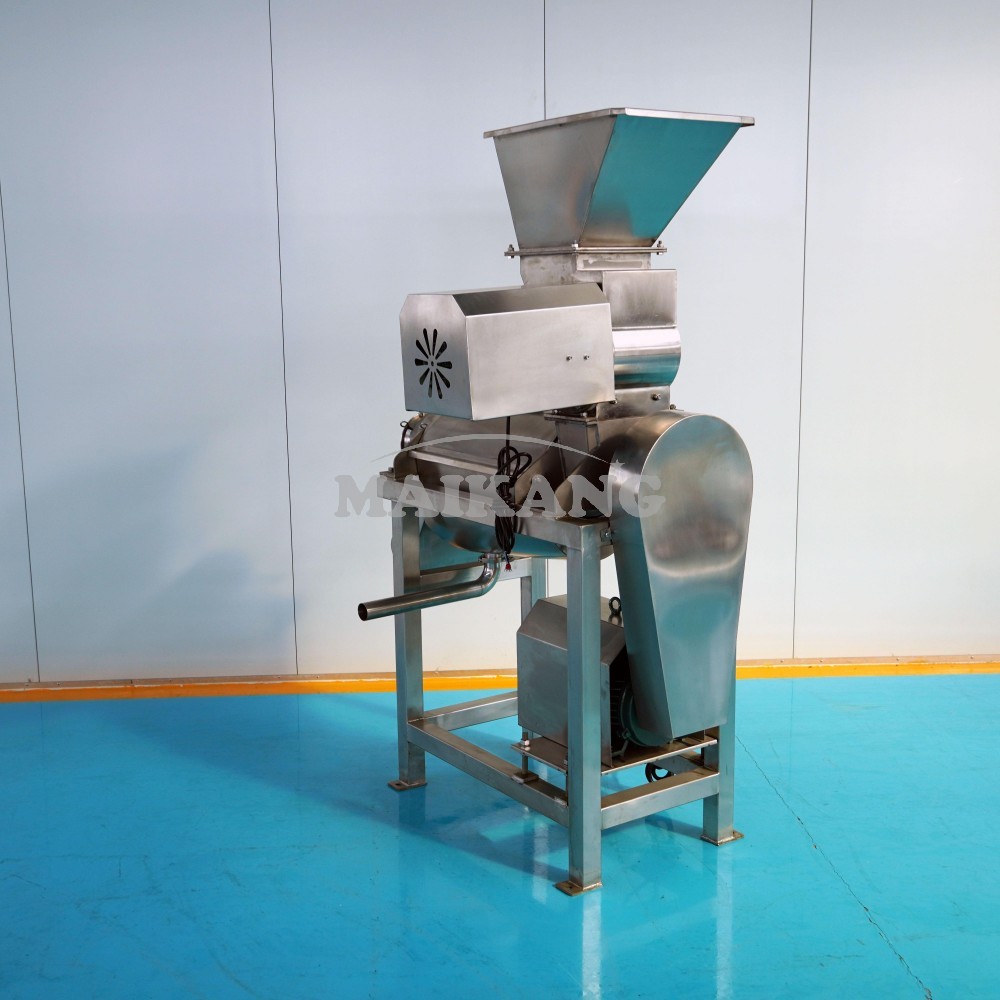

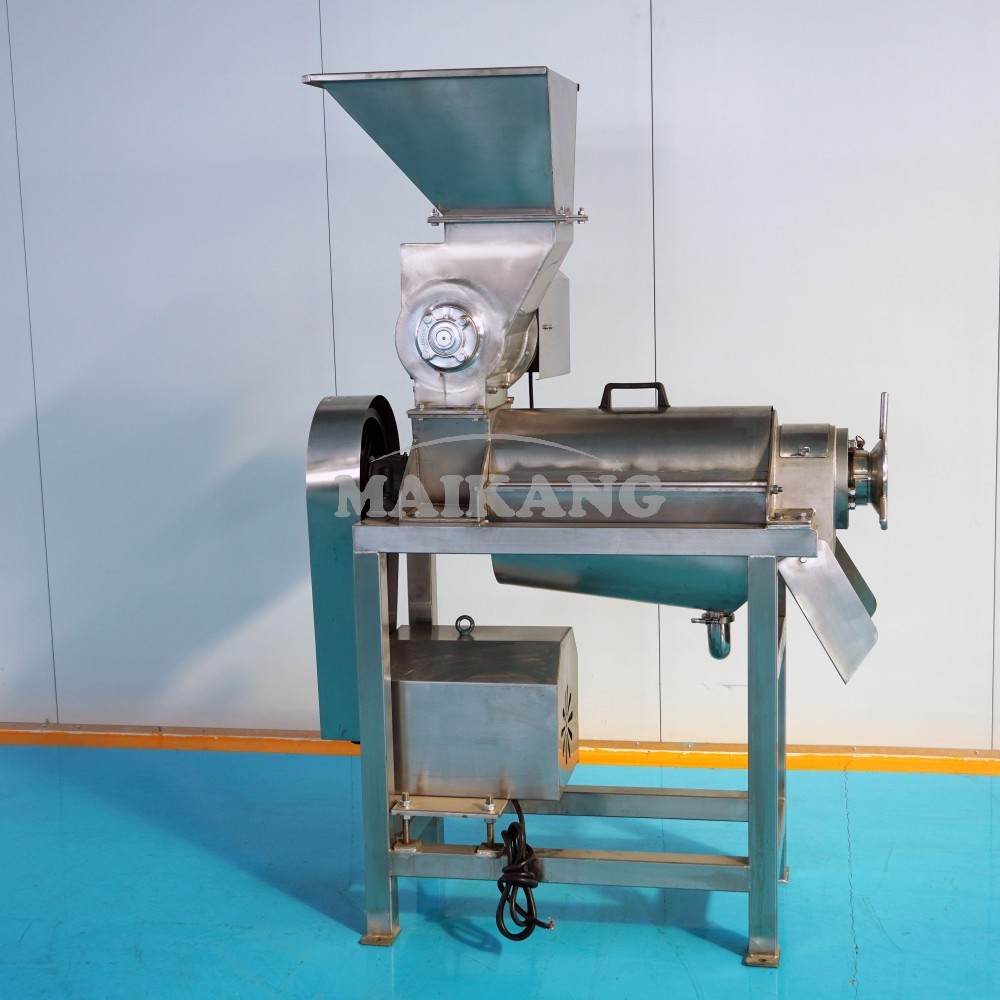

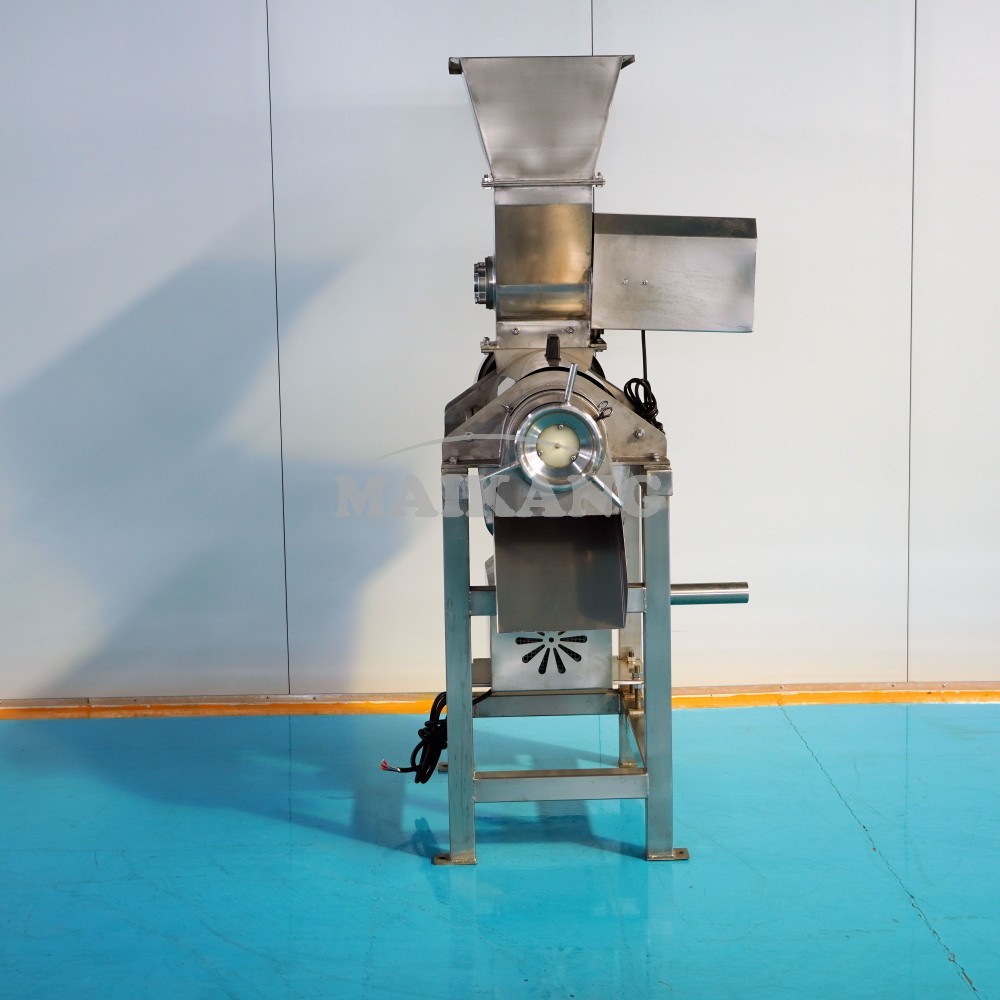

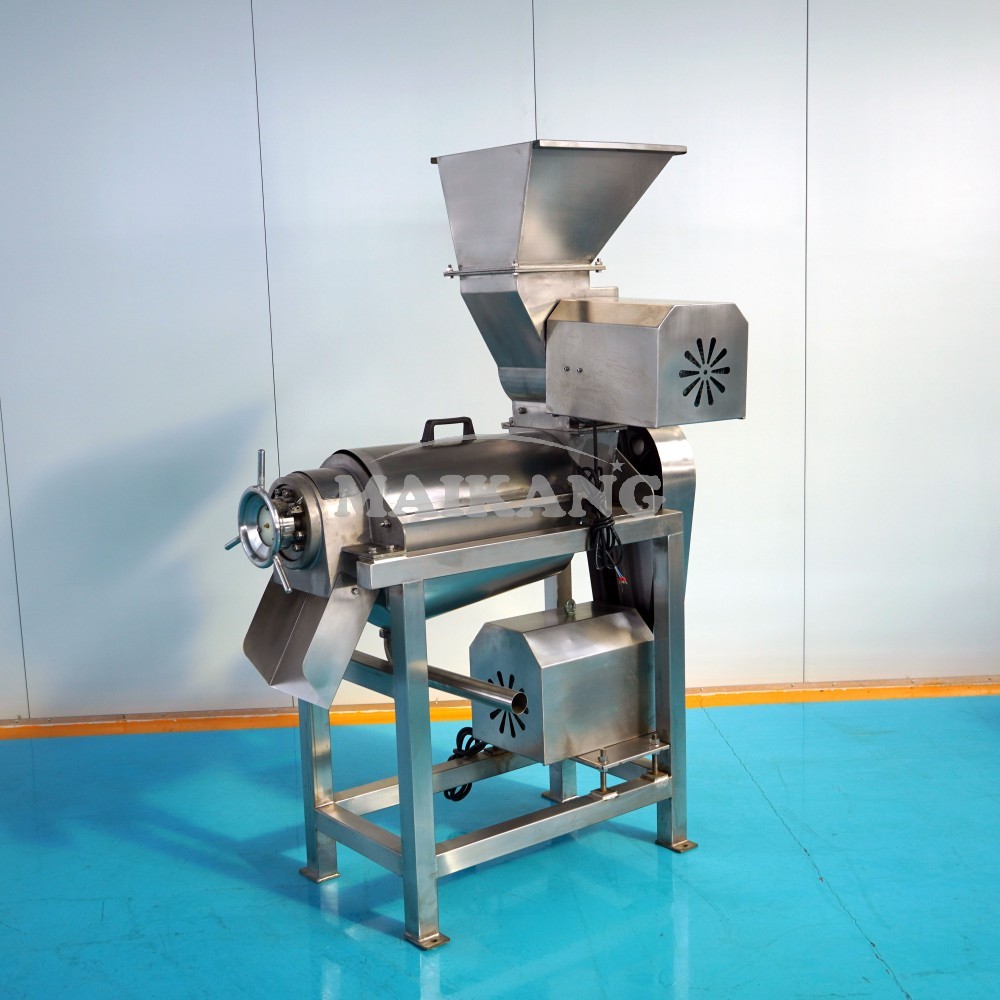

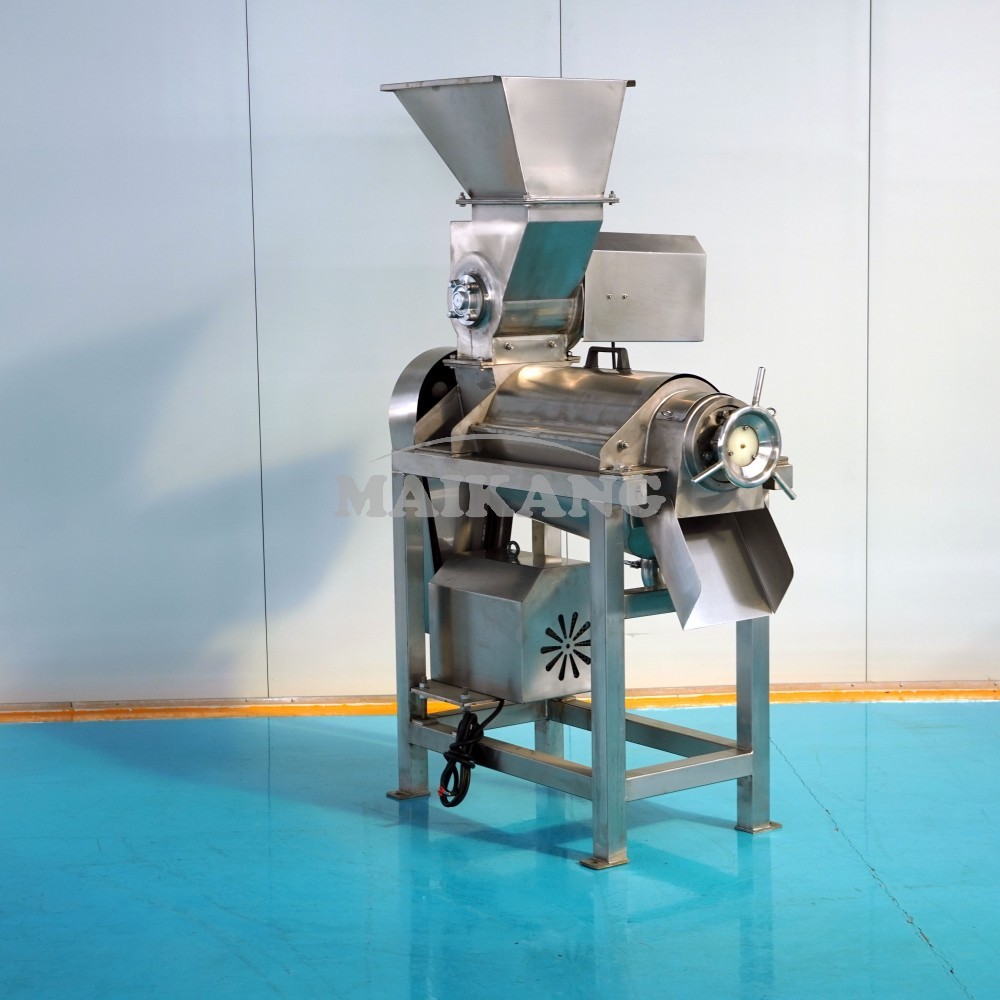

Spiral Fruit & Vegetable Juice Extractor

The single spiral juice extractor is equipped with a variable-pitch screw (featuring a gradually increasing diameter) that rotates inside the machine to transport materials. As the screw advances, variations in its pitch and adjustments to outlet resistance continuously compress the materials during conveyance. Juice is then separated and discharged through the screen mounted on the barrel, thereby completing the juicing process. As a continuous-operation juicing machine, the single-screw extractor is particularly suitable for processing materials with high fiber content.
7*24-Hour Service
After Sales Service
Full Range
WhatsApp: +86 15063652160
E-mail: ivy@cnmaikang.com
Contact us
Get a Quote

Product Details

▶ Introduction to Spiral Fruit & Vegetable Juice Extractor


The Spiral Juice Extractor Machine (also known as a screw press juicer or industrial juice extractor) is widely used for extracting juice from a variety of fruits and vegetables, including apples, pears, carrots, pineapples, berries, and leafy greens.


This machine is specially designed to integrate crushing and pressing into one continuous system, allowing raw materials to be processed efficiently from feeding to final juice separation. With its advanced screw pressing technology, it ensures high juice yield, stable performance, and energy-efficient operation, making it ideal for modern food and beverage processing lines.

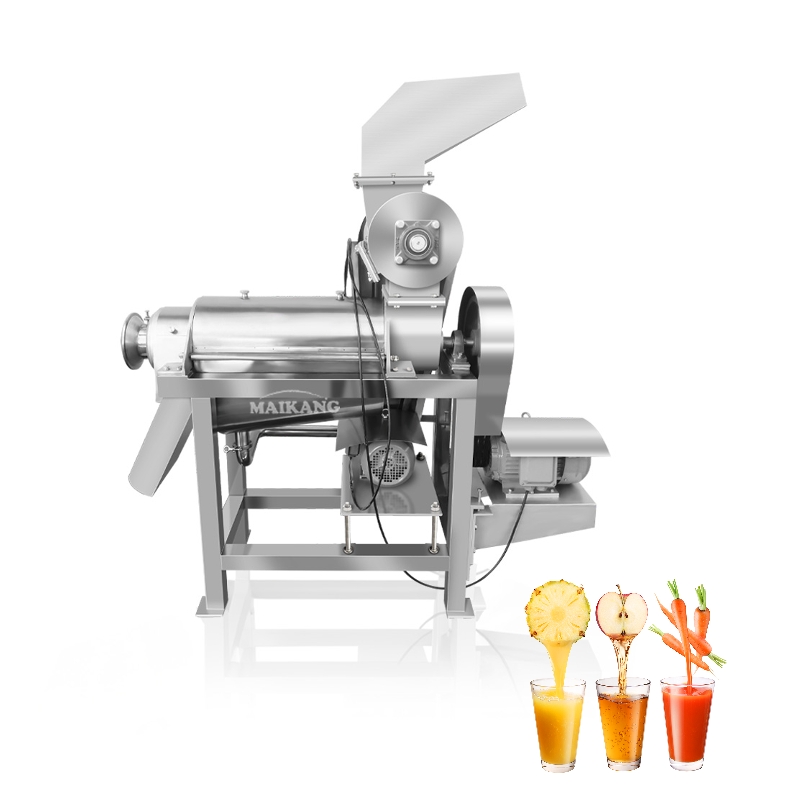

Spiral Fruit & Vegetable Juice Extractor


▶ Parameter


ModelOverall SizeTotal PowerMaterialCapacityWeight
PSZZ-0.51030*500*1650mm4.5kwSUS304300-500kg/h200kg
PSZZ-1.51260*800*1880mm7.7kwSUS3041000-1500kg/h360kg
PSZZ-2.52100*730*2100mm19kwSUS3041500-2500kg/h870kg
ApplicationThe industrial spiral juice extractor machine is designed for a wide range of fruit and vegetable juice processing applications, making it an ideal solution for modern production lines. Such as ginger, leafy greens, wheatgrass, herbal plants, apple, pear, pineapple, carrot, tomato, celery, spinach, cucumber, and other vegetables.


▶ Advantages of Spiral Juice Extractor Machine


✔ High Juice Yield with Advanced Screw Press Technology

The spiral juice extractor machine is designed with an optimized screw structure to maximize juice extraction. It significantly improves juice yield while reducing raw material waste, making it ideal for industrial juice production.


✔ Integrated Crushing and Juicing System

This industrial juice extractor combines crushing and pressing functions into one machine. The integrated design simplifies the processing workflow, reduces equipment investment, and saves production space.


✔ Continuous Operation for Industrial Production

The continuous screw press juicer ensures stable and efficient operation, making it suitable for large-scale fruit and vegetable juice processing lines.


✔ Suitable for High-Fiber Fruits and Vegetables

This fruit and vegetable juice extractor machine is specially designed to handle high-fiber materials such as ginger, leafy greens, and celery, ensuring efficient juice extraction without clogging.


✔ Food-Grade Stainless Steel Construction

The machine is made of food-grade stainless steel, ensuring hygiene, corrosion resistance, and long service life. It meets international food processing standards.


✔ Adjustable Pressure for Flexible Processing

Equipped with an adjustable pressure system, the machine allows users to control juice yield and pulp dryness according to different materials and processing requirements.


✔ Easy Cleaning and Low Maintenance

The screw juice extractor machine features a simple structure, making it easy to clean, maintain, and operate, reducing downtime and labor costs.

Equipment Details Display

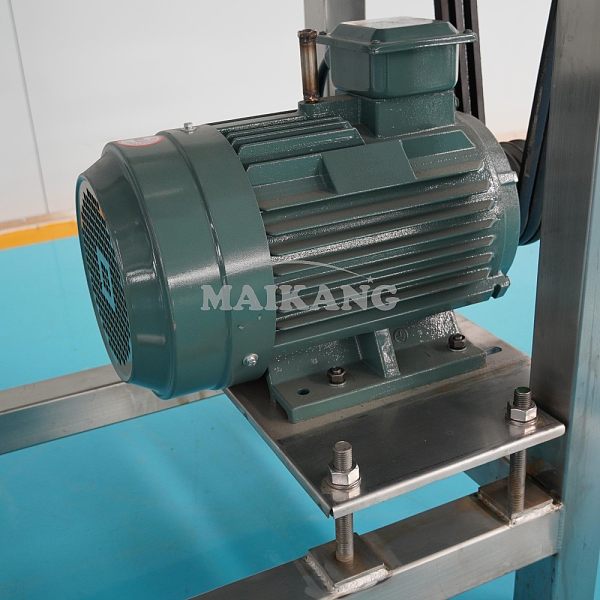

  • Adopts the heavy-duty motor with strong torque to ensure continuous working performance.
    Adopts the heavy-duty motor with strong torque to ensure continuous working performance.

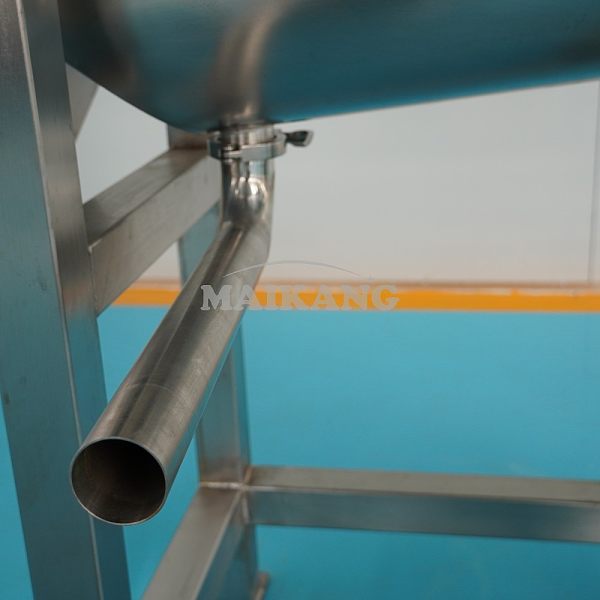

  • The machine is equipped with a smooth, food-grade juice outlet pipe for hygienic and unobstructed juice flow.
    The machine is equipped with a smooth, food-grade juice outlet pipe for hygienic and unobstructed juice flow.

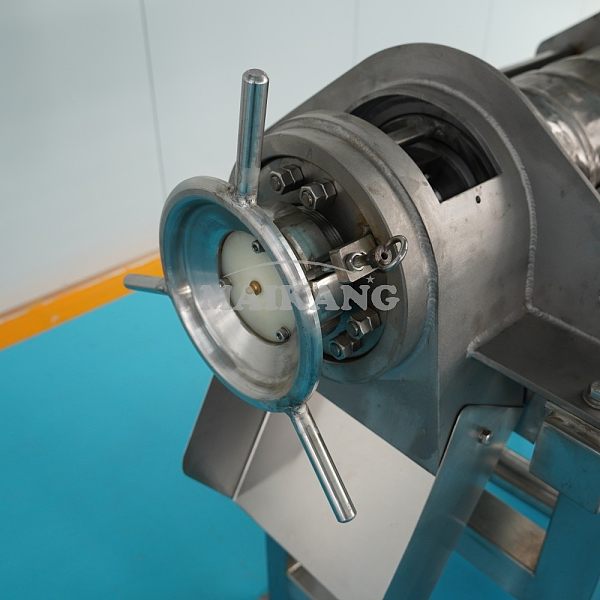

  • The residue discharge adjustment device can change the resistance at the discharge outlet, which further controls the squeezing pressure and the dryness of the pomace.
    The residue discharge adjustment device can change the resistance at the discharge outlet, which further controls the squeezing pressure and the dryness of the pomace.
