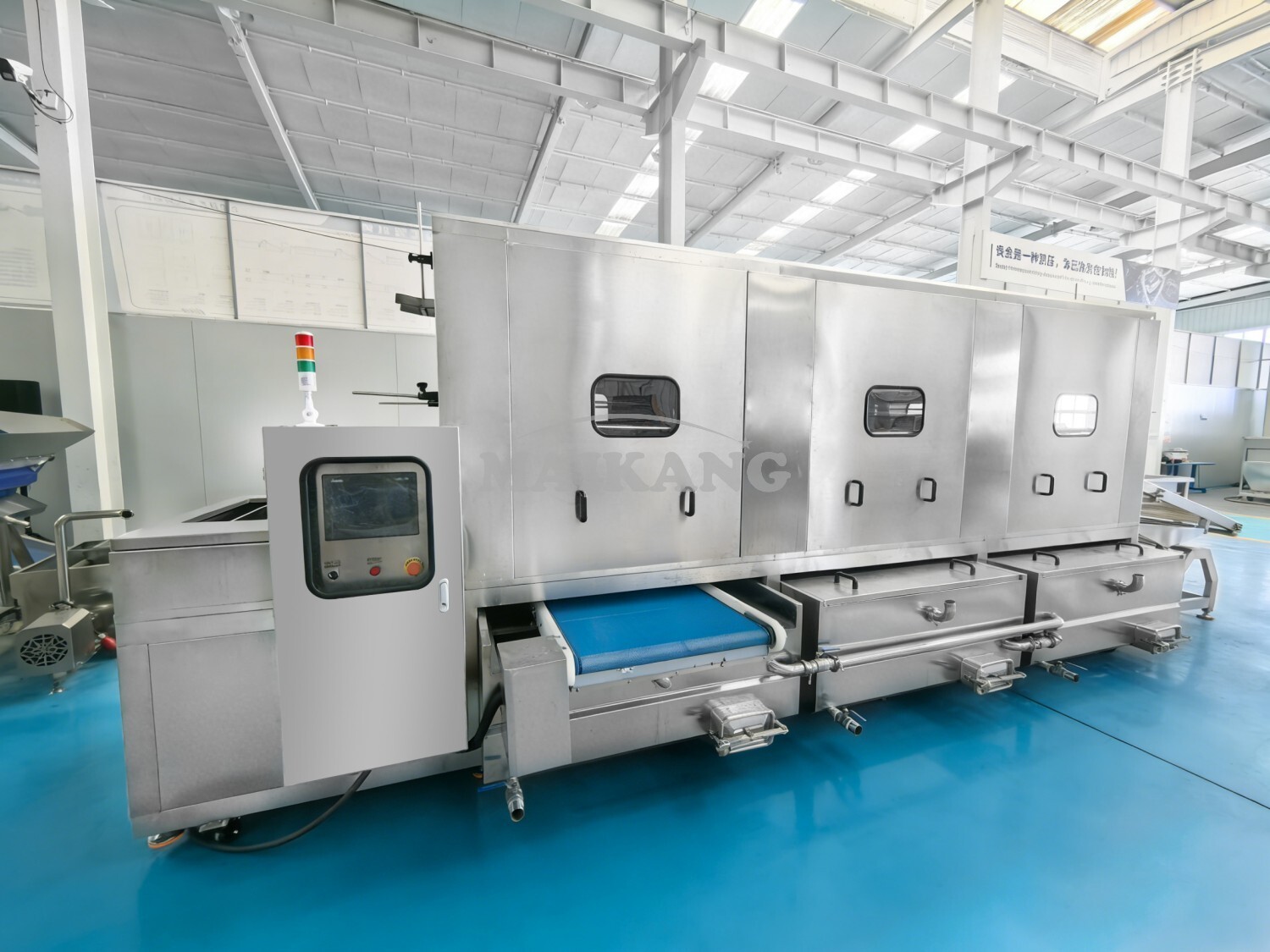

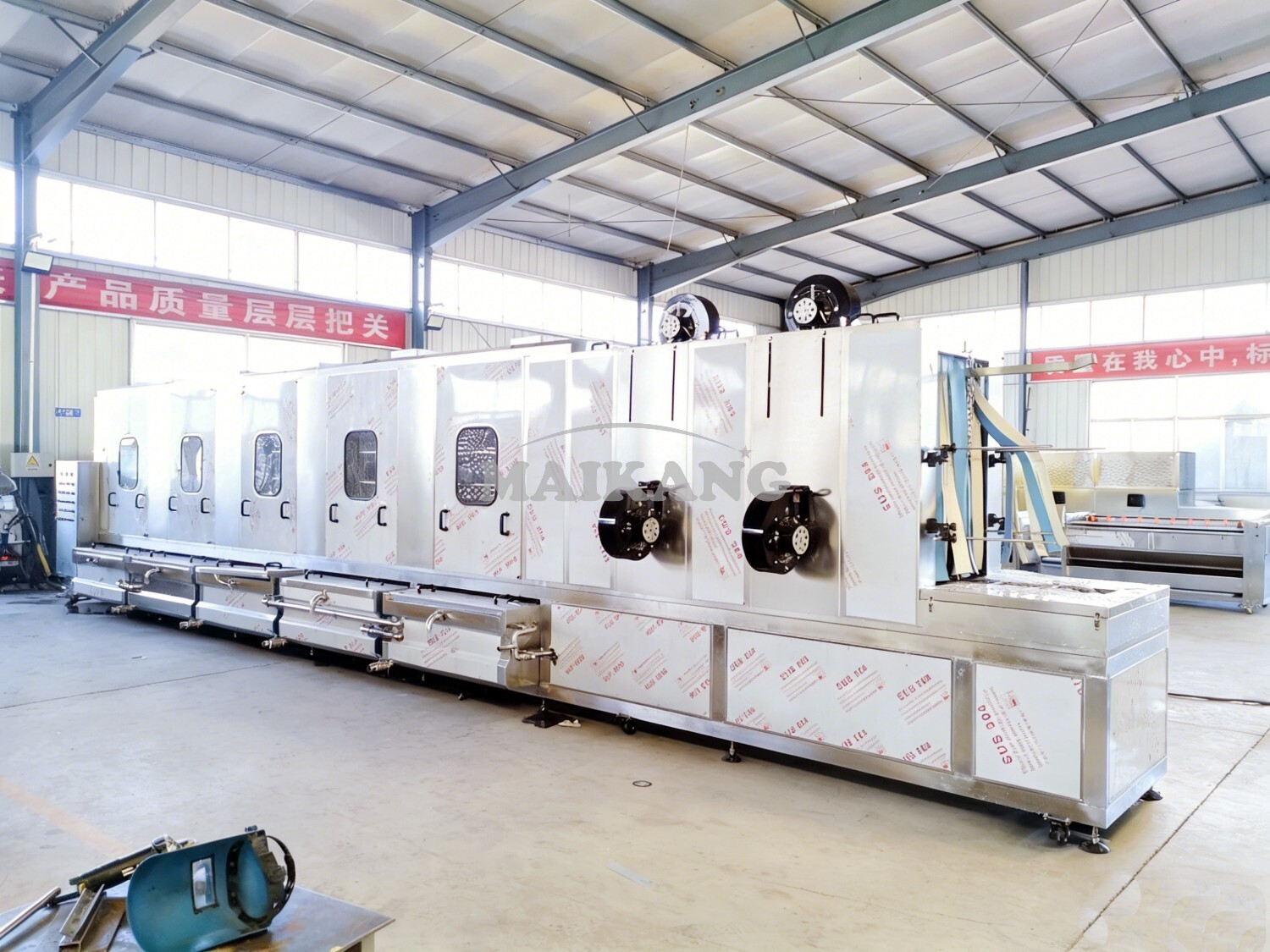

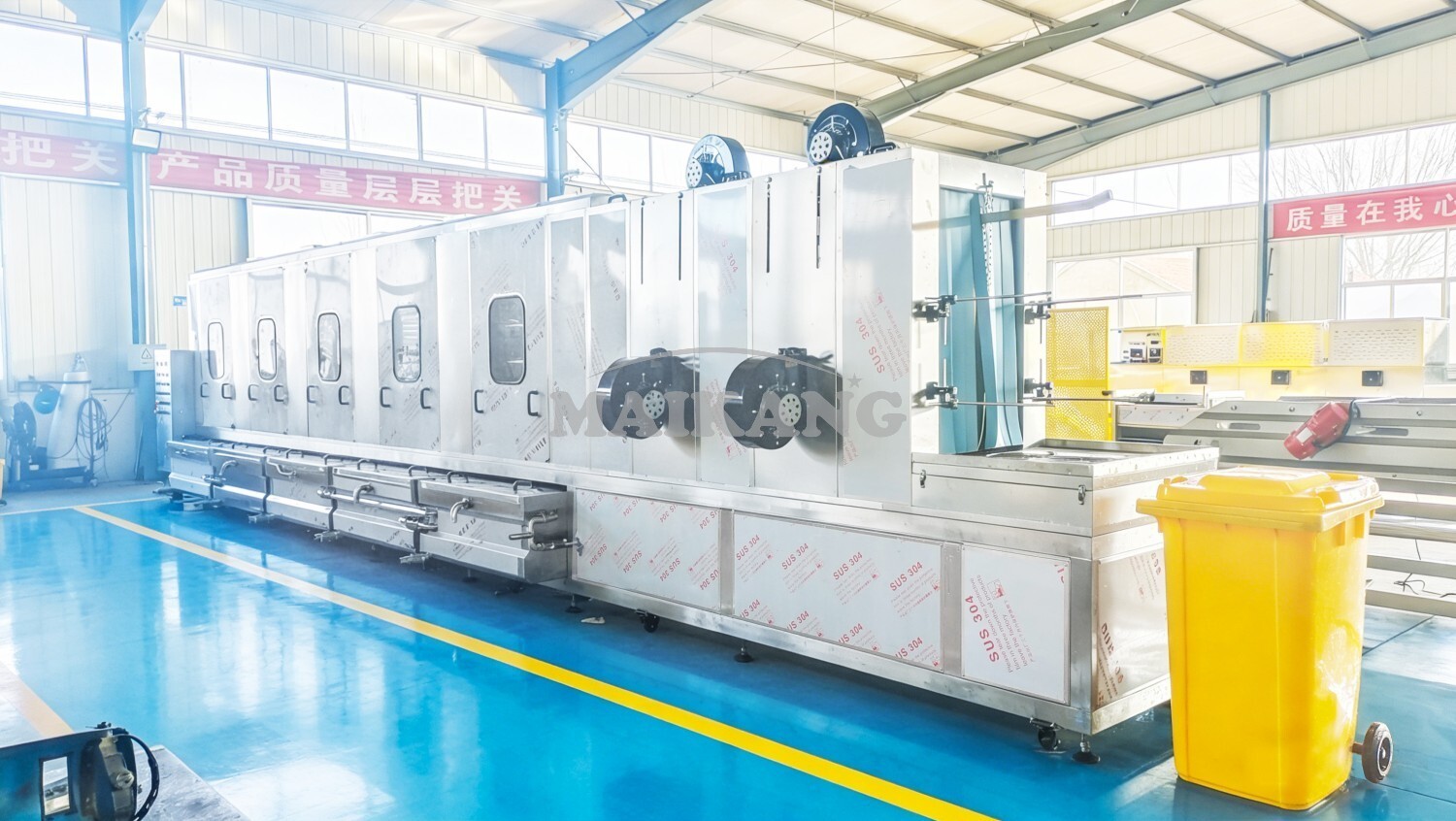

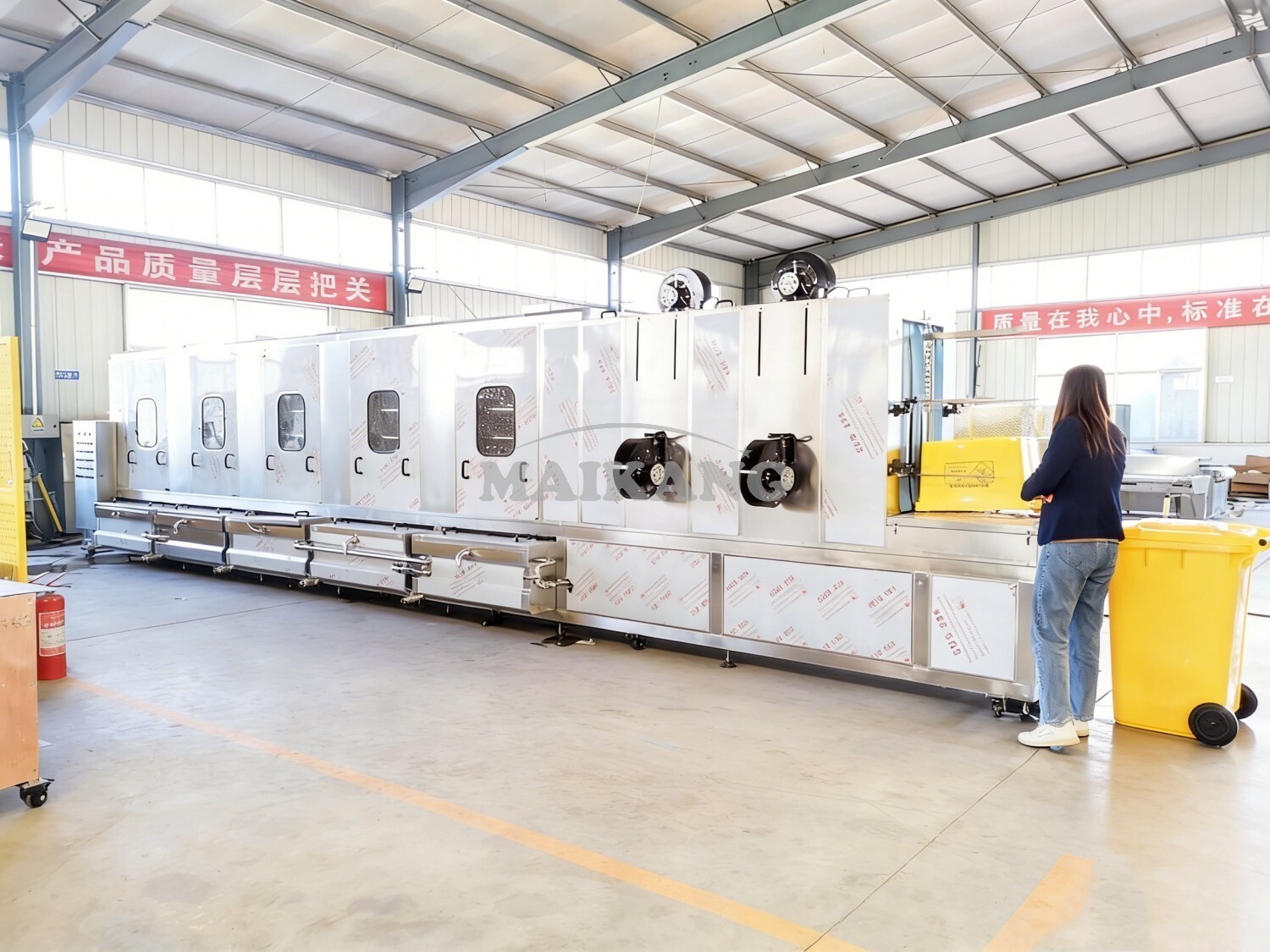

Bin Washer

▶  The cleaning process consists of three stages

Pre-washing, main washing, and rinsing. Bins to be cleaned are fed into the washing channel from the inlet, where high-pressure nozzles spray them from multiple angles to thoroughly remove grease and residues. Wastewater is separated and recycled through a filtration system, while debris is automatically discharged. The rinsing section uses room temperature water to completely eliminate cleaning agents, ensuring the bins are clean and hygienic. We can also design the drying part to blow the big drops of water which can remove most of moisture, if you need.

▶ Parameter

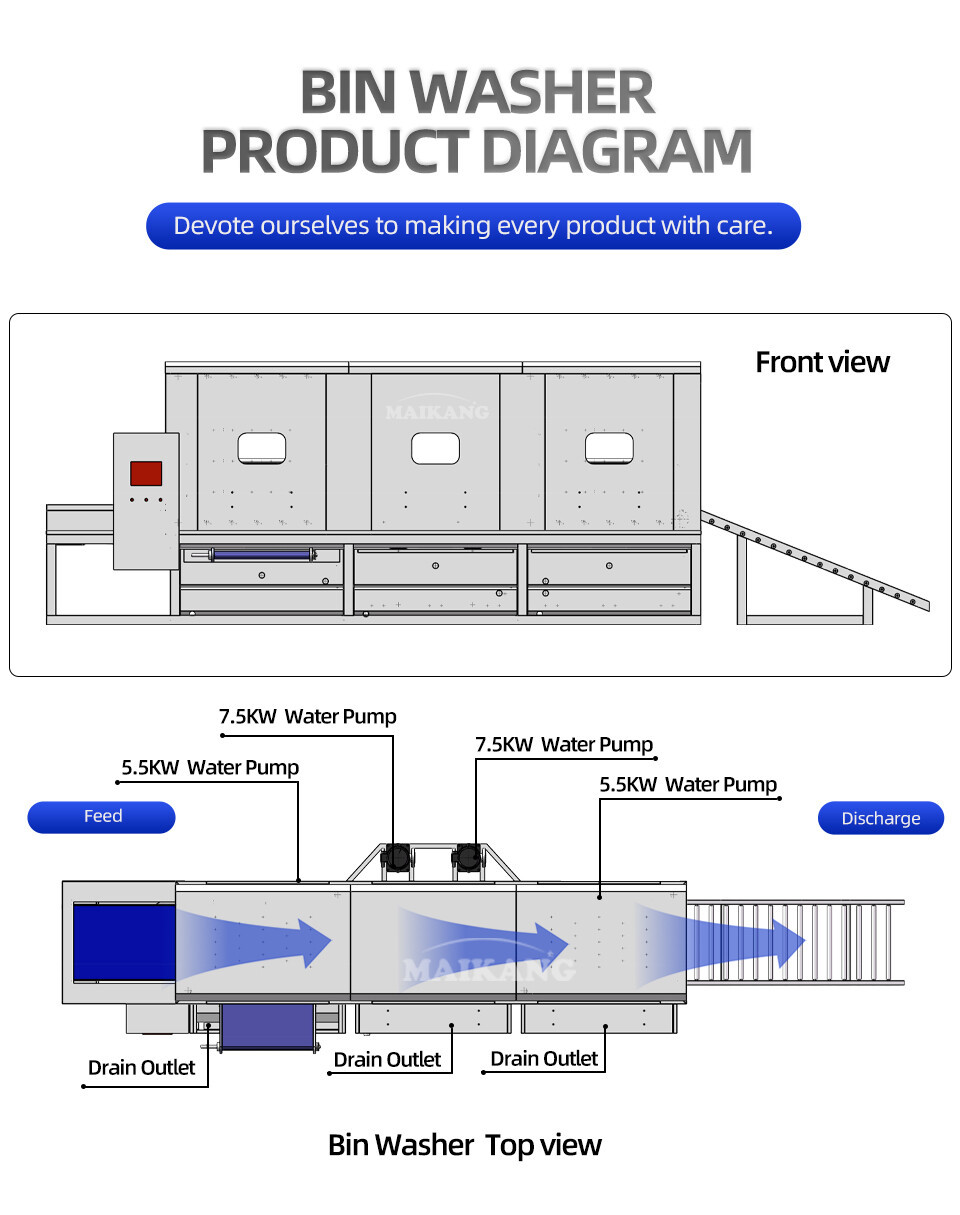

▶  Main Components

1.Frame & Tunnel: The main structure of the equipment, typically made of high-quality stainless steel, offering corrosion resistance and easy cleaning.

2.Conveying System: Composed of motor-driven chain plates or rollers, it ensures smooth transportation of bins through the entire cleaning process. The speed is adjustable to accommodate different cleaning needs.

3.High-Pressure Spray System:

Pre-wash: Use high-pressure hot or normal-temperature water to remove large residues first.

Main Cleaning: Spray hot water mixed with specialized detergent for powerful degreasing and stain removal.

Rinsing: Use clean water to rinse away detergent foam and remaining stains.

Disinfection (Optional): Spray disinfectant to kill germs.

4.Water Circulation & Filtration System:

Recycles and filters cleaning water. After sedimentation and filtration (e.g., via hair filters), the water can be reused for pre-rinsing, significantly saving water resources and energy consumption.

5.Heating & Drying System: Heating Unit: Heats the cleaning water (typically via electric or steam heating), as hot water delivers far superior cleaning results compared to cold water.

Drying Unit: Equipped with powerful fans at the outlet to blow hot air, rapidly drying the bins and preventing bacterial regrowth.

6.Automatic Control System: Utilizes a PLC and a touch-screen HMI. Operators can easily set parameters such as cleaning time, water temperature, and drying temperature. The system includes automatic fault alarm functionality.

▶  The Advantages of Trash Bin Washer

✔ High Efficiency and Labor Savings: Enables continuous automated operation, cleaning dozens to hundreds of bins per hour, greatly reducing manual labor and improving work efficiency.

✔ Thorough Cleaning: Multi-angle, high-pressure rotating nozzles ensure no cleaning dead angles, delivering results far superior to manual scrubbing.

✔ Environmentally Friendly and Energy-Efficient: The water circulation system significantly reduces tap water consumption and wastewater discharge.

✔ Safe and Hygienic: High-temperature cleaning and disinfection effectively eliminate harmful bacteria such as E. coli, preventing cross-contamination, improving sanitation conditions, and ensuring employee health.

✔ Extended Service Life: Regular thorough cleaning prevents damage caused by corrosive waste residues, prolonging the lifespan of the bins.
