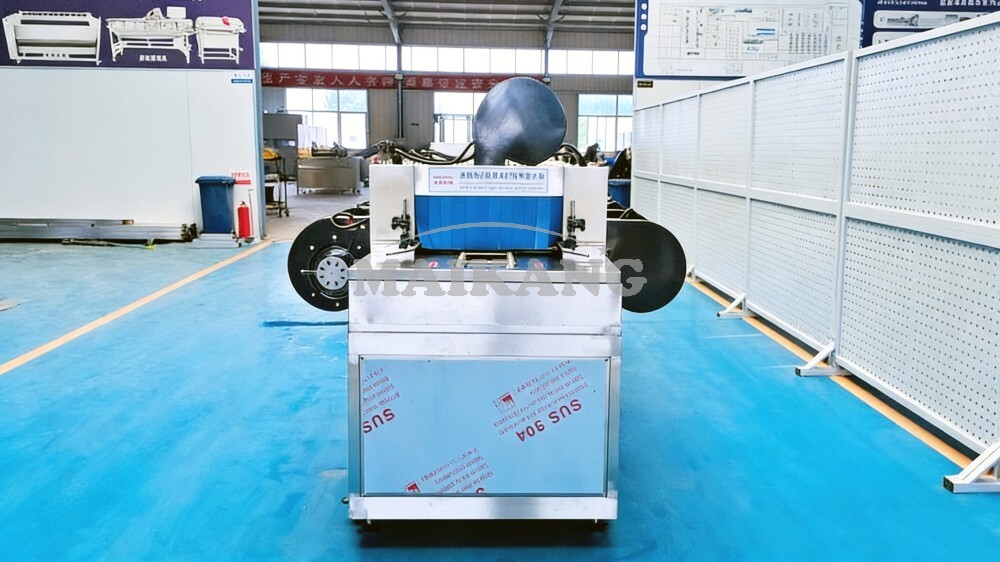

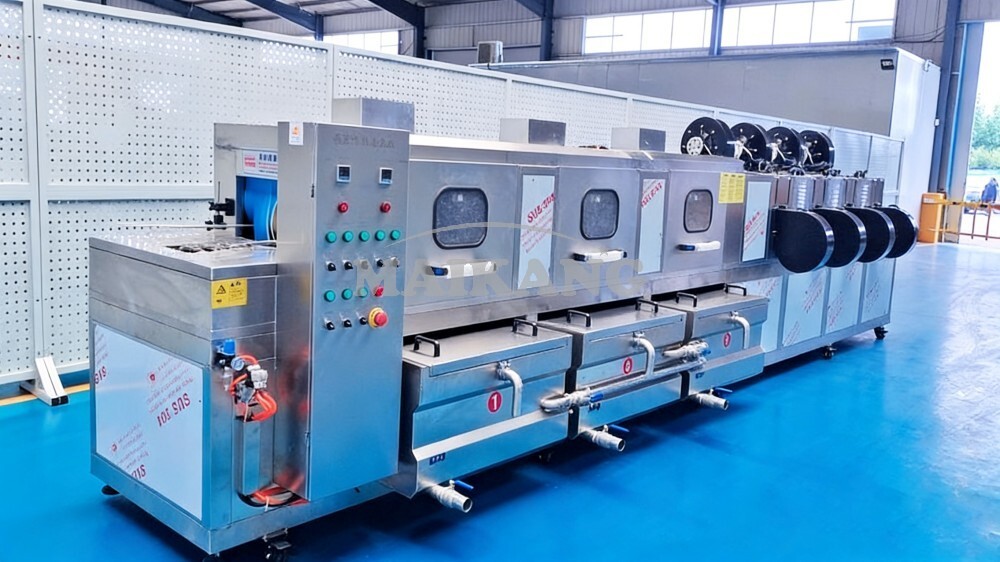

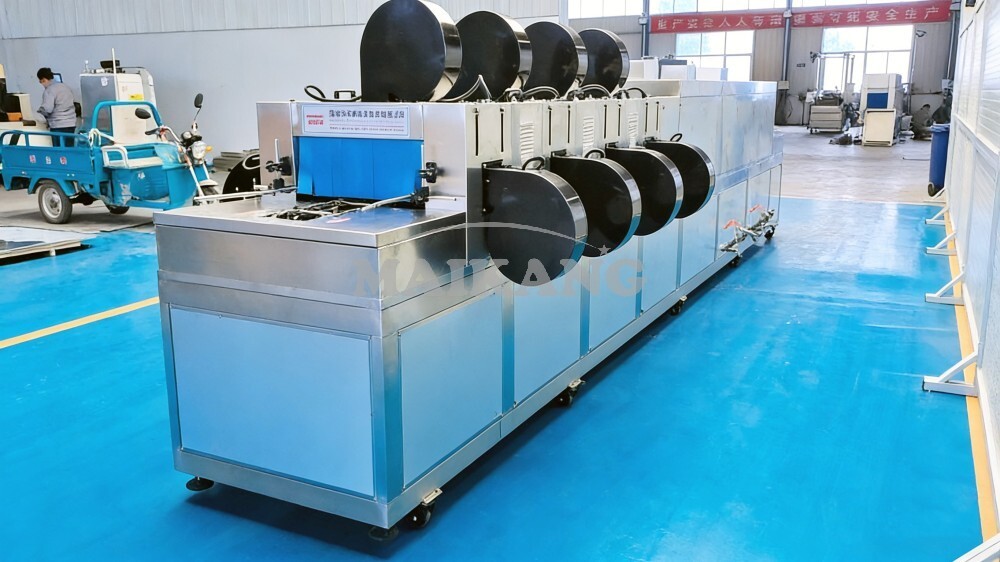

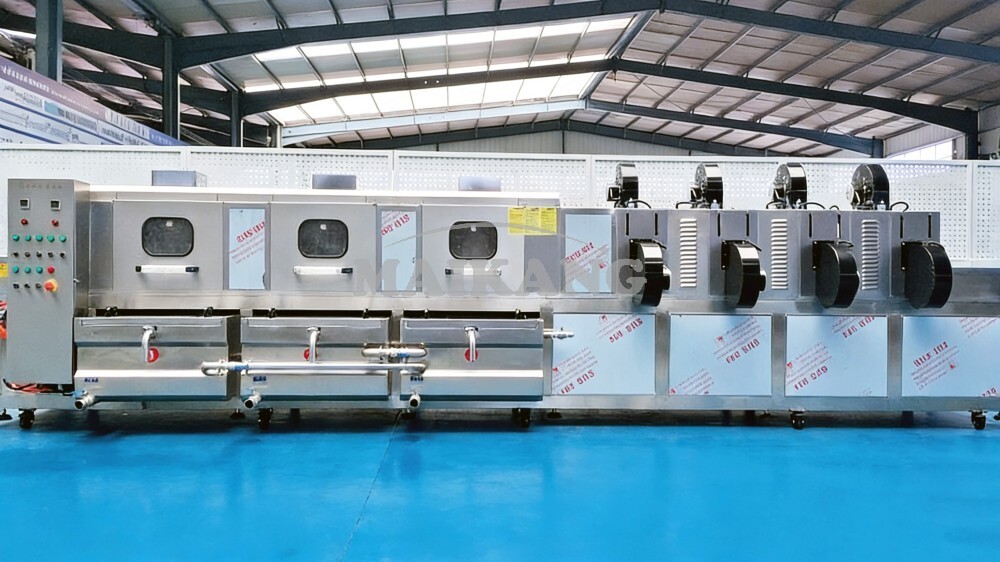

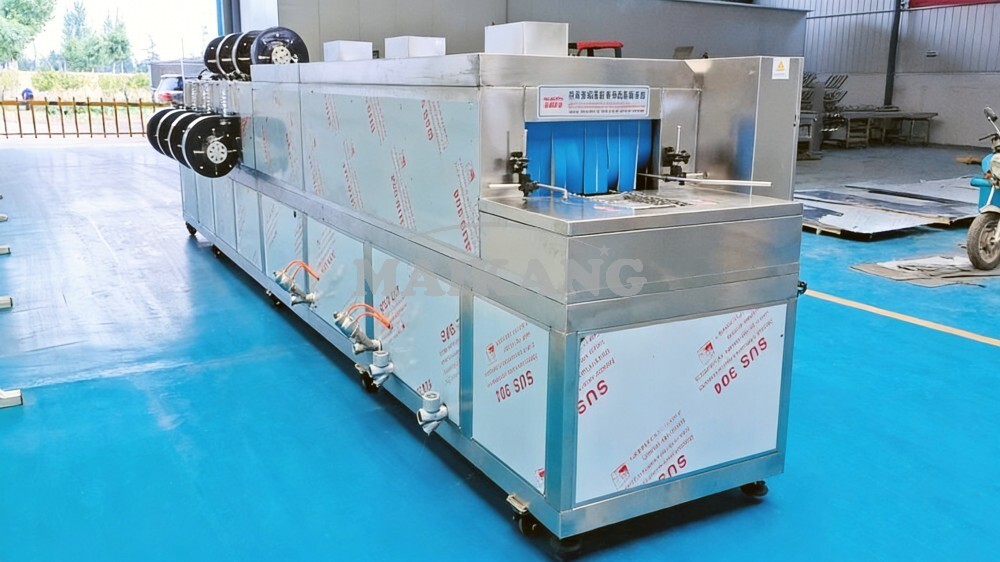

Stainless Steel Tray Washer

▶ Tray Cleaning Machine with Air Blower

Tray washer and air dryer machine is a good helper to save labor which is including washing and air drying functions all in one machine. The whole body material is SUS304 which is durable and stable, meets the food hygiene requirement.

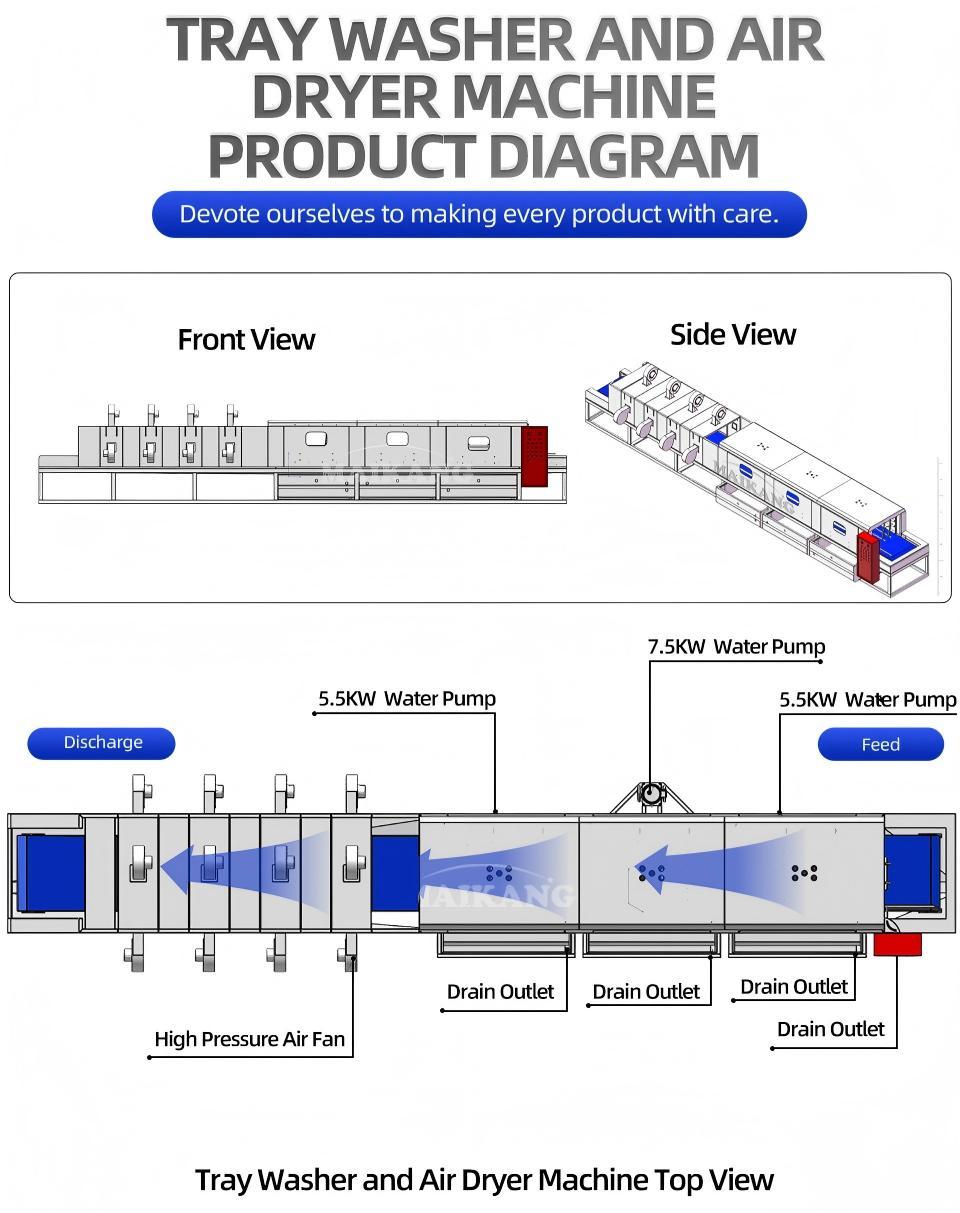

Here are three washing sections: the first and second is hot water( design the electric heat pipes in the water tanks)to wash the tray, if the tray is too dirty, can add the detergent into the first water tank directly to clean, the third is home temperature to rinse it. Then the tray will go through to the air drying part to blow the big drop of water which can remove most of moisture.

▶ Parameter

▶ Core Features and Characteristics

Fully Automated Cleaning and Drying Process: No intermediate handling is required; trays automatically proceed to the drying section after cleaning, effectively preventing secondary contamination and saving labor and time costs.

▶ Multi-Stage Cleaning System

1. Pre-wash section for powerful removal of adhered debris;

2. Main wash section with heated water and detergent options to thoroughly break down grease and organic matter;

3. Fresh water rinsing ensures no chemical residue;

4. Efficient drying with multiple sets of clean hot air circulation systems for rapid surface moisture removal.

Energy-Efficient and Eco-Friendly Design: Equipped with a water circulation and filtration system, significantly reducing fresh water consumption; the drying section features heat recovery to minimize energy waste.

Hygienic Material Assurance: Constructed with 304/316 stainless steel, corrosion-resistant and easy to clean, complying with food industry SSOP, HACCP, and other hygiene certification requirements.

Flexible Customization Options: Customizable cleaning modules and processes based on different tray/container sizes and specific soiling types (e.g., protein, sugar stains, grease).

▶ Applications

✔ Food Processing: Central kitchens, prepared meals, meat and poultry processing, dairy, baking, and pickling factories;

✔ Beverage Industry: Fermentation trays, brewing containers, filling line carriers;

✔ Pharmaceutical and Chemical Industries: Fields requiring high-standard container cleaning.

Tips: For detailed technical solutions or custom services, please feel free to contact us.
