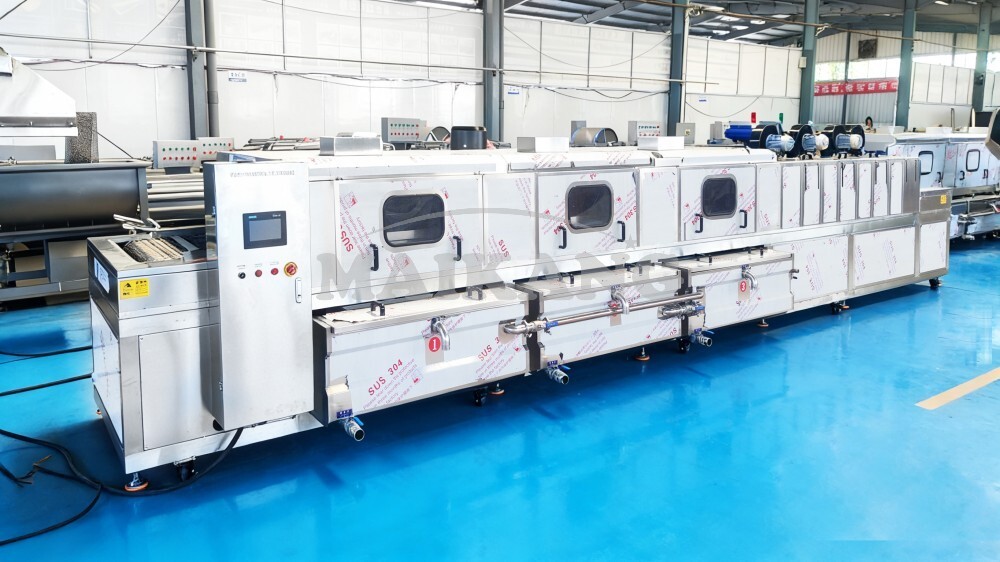

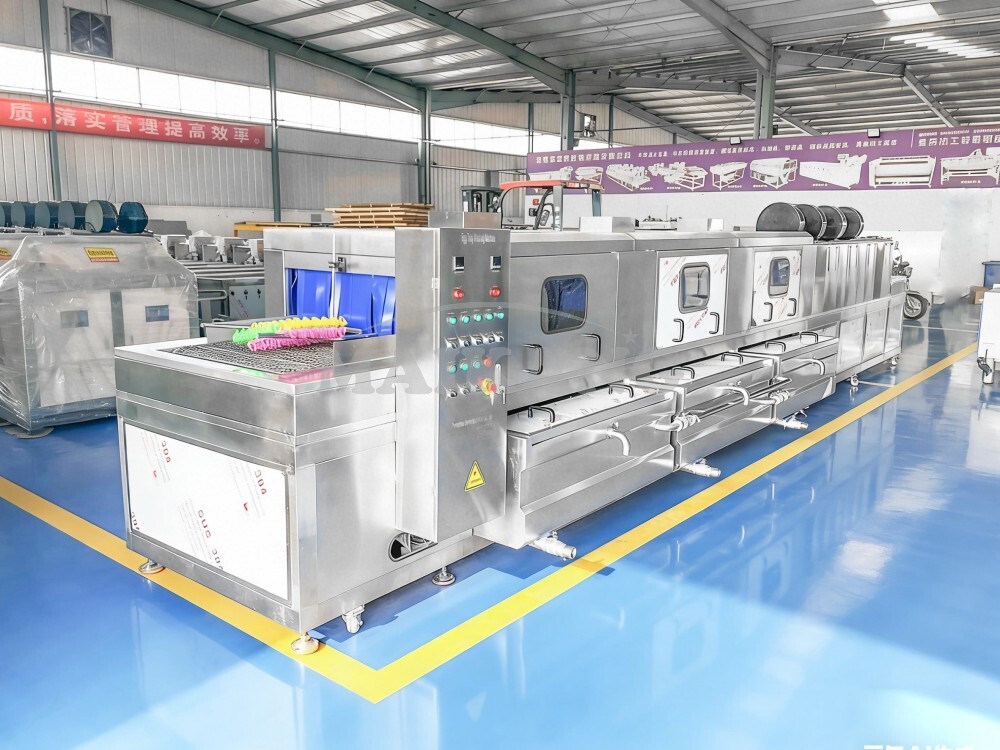

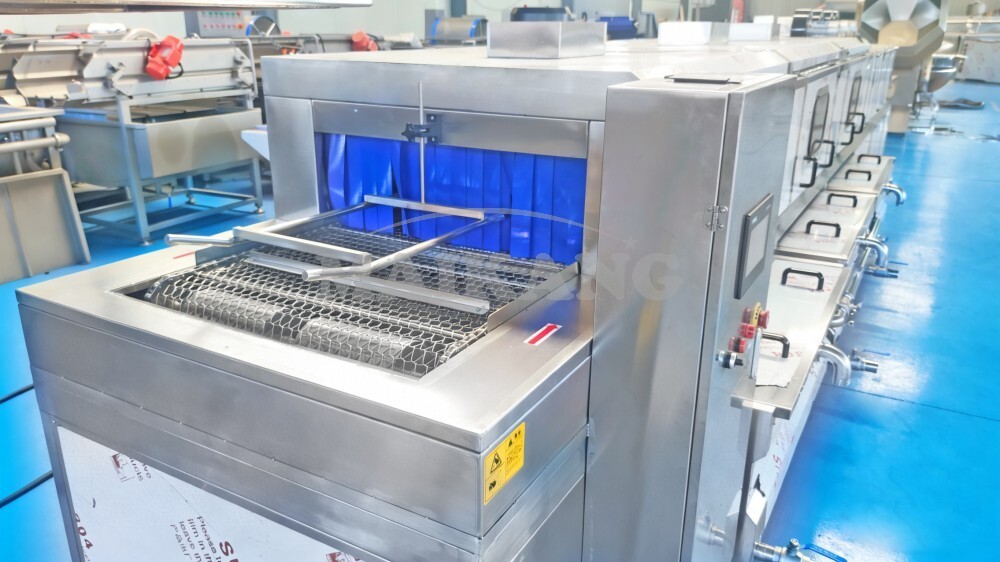

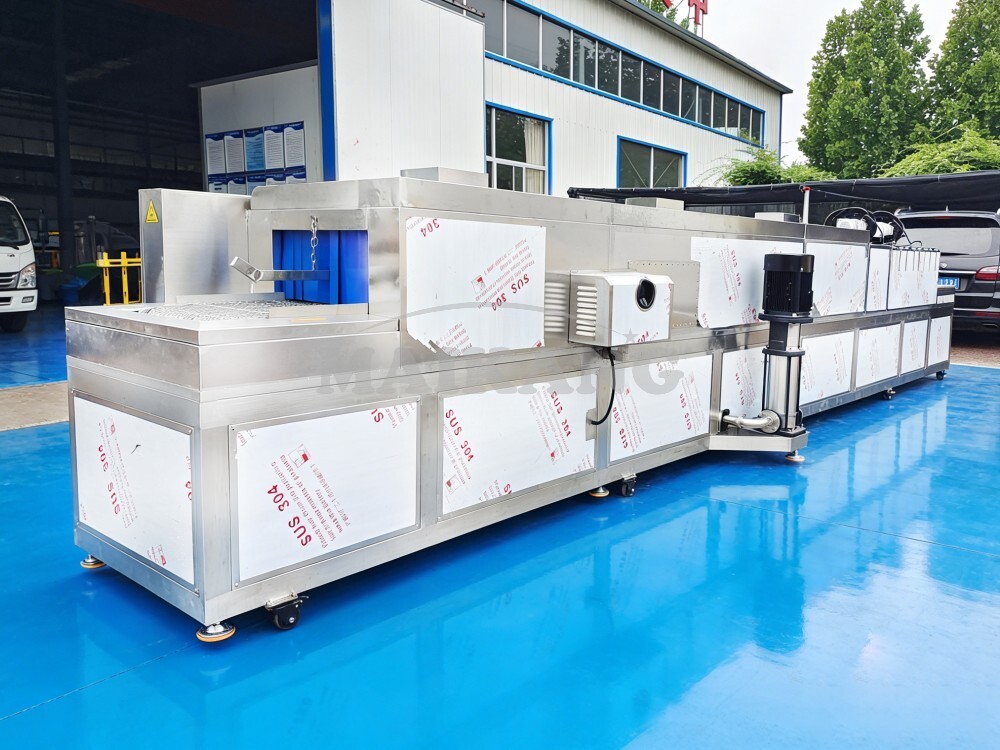

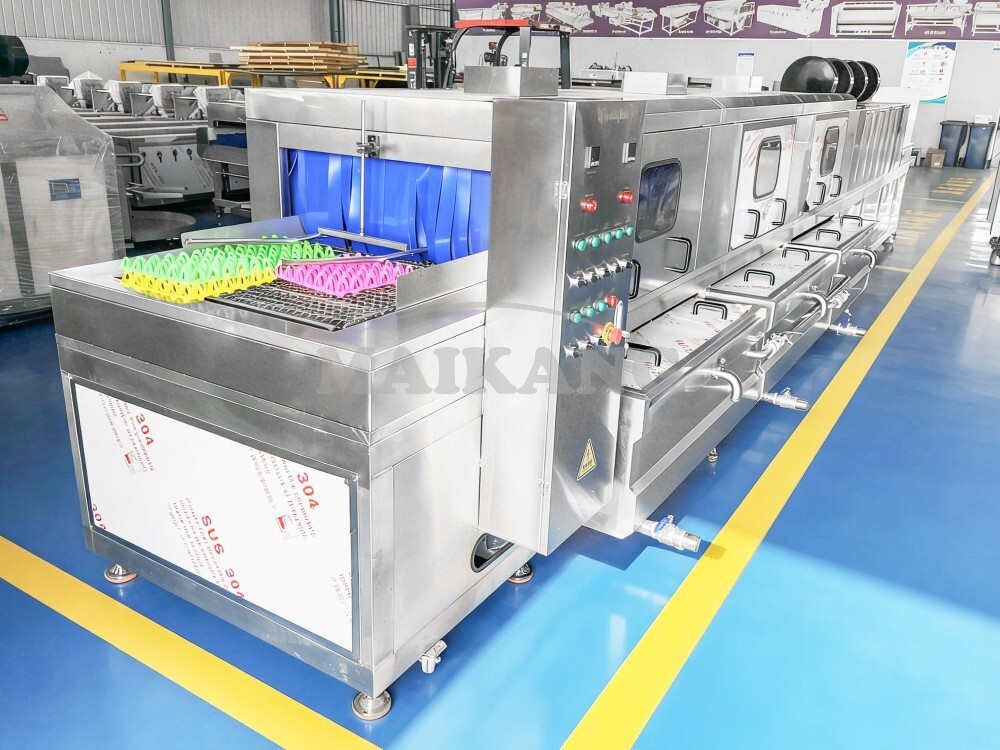

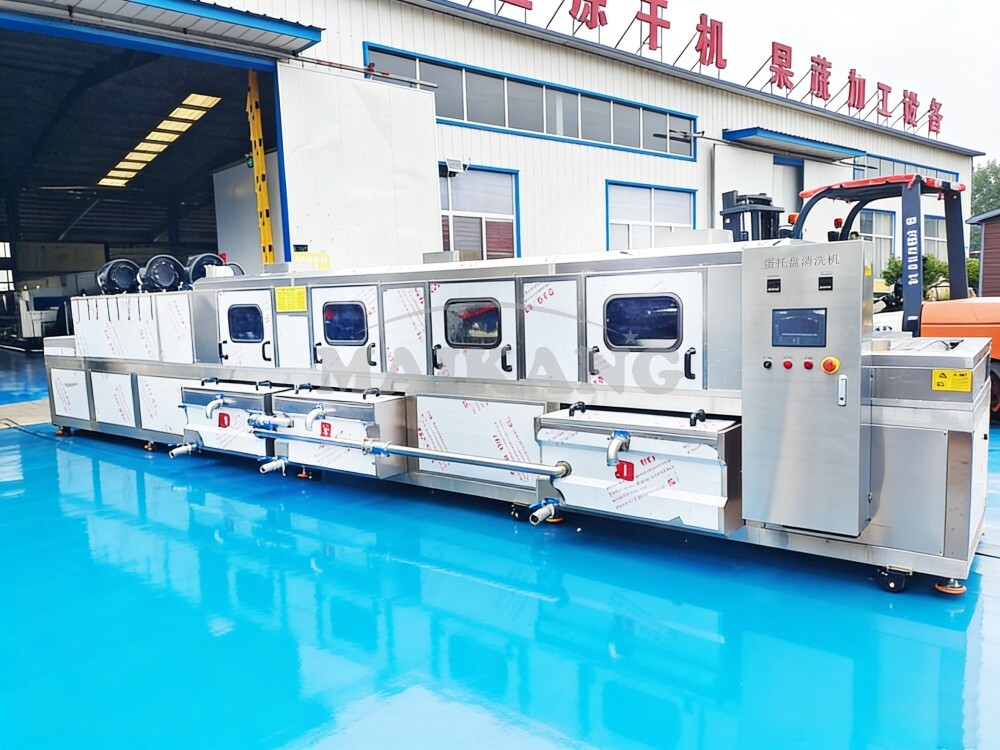

Egg Tray Washing Machine

Egg tray washing machine is a good helper to save labor cost. The whole body material is SUS304 which is durable and stable, meets the food hygiene requirement.
There are three washing sections: the first and second is hot water( design the electric heat pipes in the water tanks)to wash egg trays, if the egg trays are too dirty, can add soda/detergent into the first water tank directly to clean, the third is home temperature to rinse it. We can also design the drying part to blow the big drops of water which can remove most of moisture, if you need.
7*24-Hour Service
After Sales Service
Full Range
WhatsApp: +86 15063652160
E-mail: ivy@cnmaikang.com
Contact us
Get a Quote

Product Details

▶ The cleaning process consists of three stages

Pre-washing, main washing, and rinsing. Egg trays to be cleaned are fed into the washing channel from the inlet, where high-pressure nozzles spray them from multiple angles to thoroughly remove grease and residues. Wastewater is separated and recycled through a filtration system, while debris is automatically discharged. The rinsing section uses room temperature water to completely eliminate cleaning agents, ensuring the egg trays are clean and hygienic.

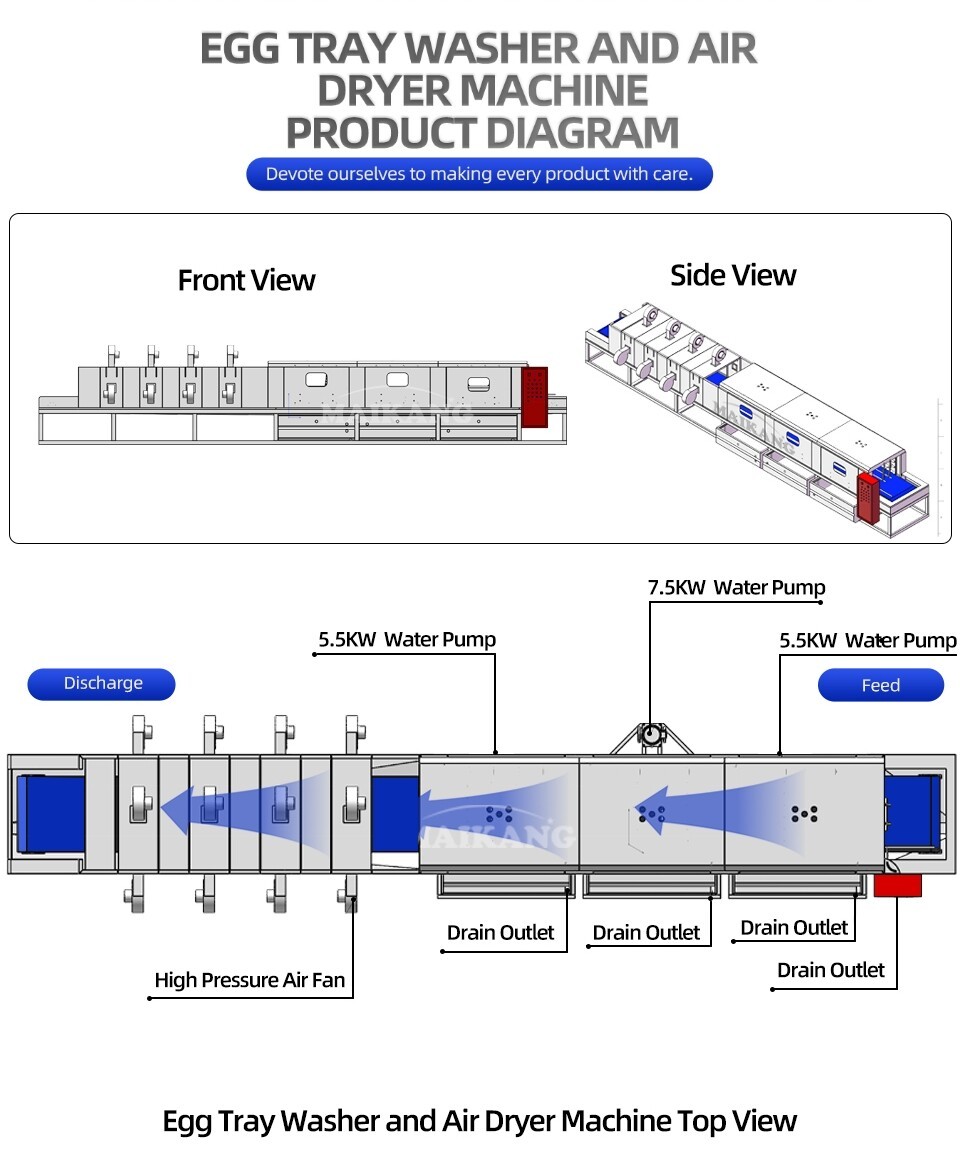

组 41@1x


▶ Parameter


Product NameEgg tray washing machine
Place of OriginShandong, China
Capacity1000pcs/ hour
Square Tube40*80mm, 2.0mm thickness
MaterialSUS 304
Power Supply380V/50Hz (can be customized)
Overall Dimensions6000*1600*1800mm
Water Pump5.5 KW + 7.5 KW + 5.5 KW (Chinese famous brand)
Tank Heating Element18 KW * 2 tanks (electric heating pipe)
Drive Motor1.5 KW frequency conversion speed regulation


▶ Working Principle


The working principle of the egg tray washing machine is a typical industrial cleaning process that integrates mechanical, hydraulic, and thermodynamic principles. It utilizes a combination of hot water at 70–80°C and high-pressure spray jets to efficiently dissolve and flush away organic contaminants such as egg residue, feces, and feathers. Furthermore, the machine can be custom-designed to automatically separate trays for individual cleaning, followed by re-stacking after washing.


▶ The Advantages of Egg Tray Washing Machine


✔ Water Savings: Up to 70% water usage reduction compared to traditional methods.
✔ Labor Savings: Can save 7-8 personnel compared to manual cleaning methods.

Tips: we can provide the suitable solution based on your item, capacity and requirements. Please feel free to contact us.

Equipment Details Display

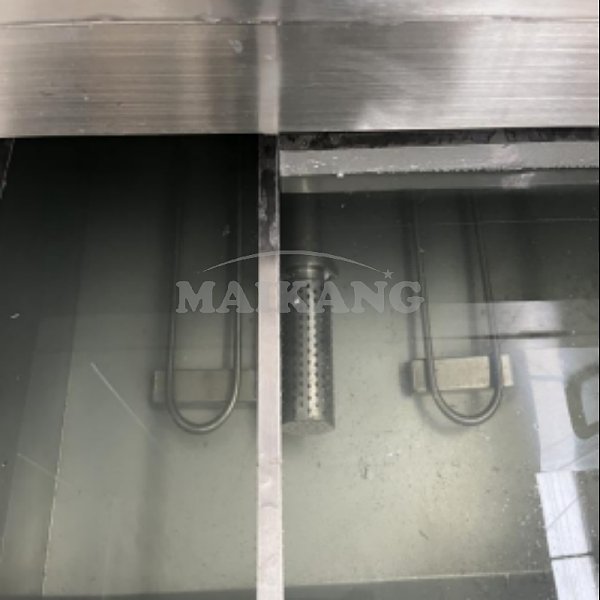

  • Water tank with electric heat pipes and filters, the electric heat pipes are in the first and second water tanks. Each tank of water is single recycling.
    Water tank with electric heat pipes and filters, the electric heat pipes are in the first and second water tanks. Each tank of water is single recycling.

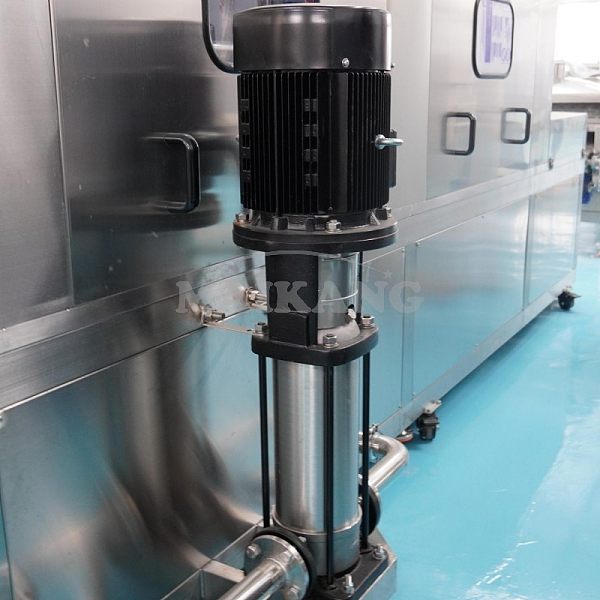

  • Using high pressure water pumps to wash egg trays, usually the first and third station is horizontal water pump while the second is vertical one.
    Using high pressure water pumps to wash egg trays, usually the first and third station is horizontal water pump while the second is vertical one.

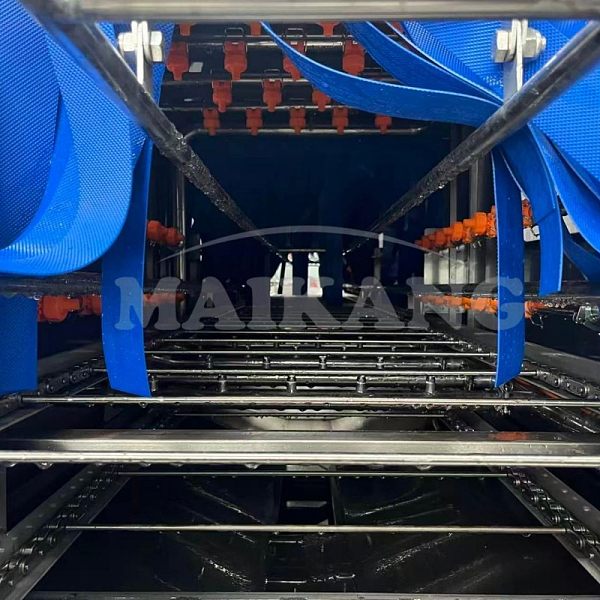

  • The nozzles spray a fan-shaped water curtain to deliver a powerful, all-around wash to the egg trays, ensuring no blind spots.
    The nozzles spray a fan-shaped water curtain to deliver a powerful, all-around wash to the egg trays, ensuring no blind spots.

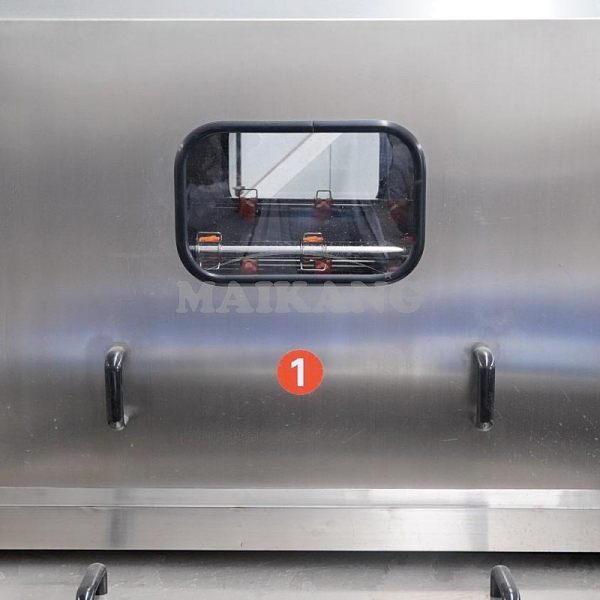

  • Removable panel with visible window which is easy to observe egg trays washing processing and maintain.
    Removable panel with visible window which is easy to observe egg trays washing processing and maintain.

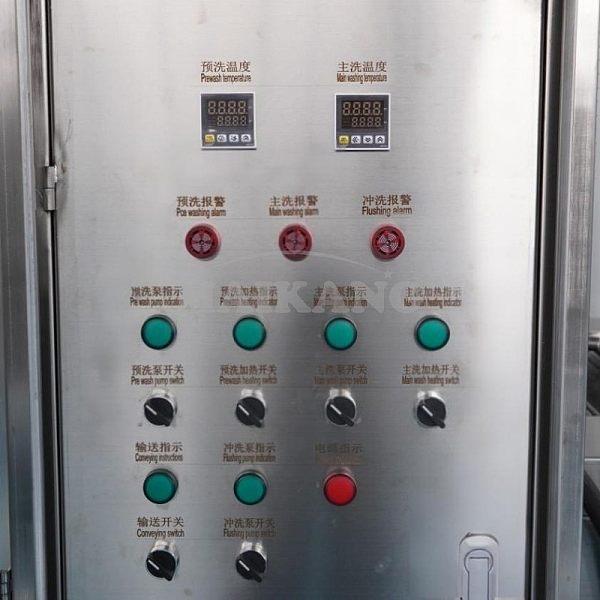

  • Waterproof electric cabinet which can design to button or touch screen operation.
    Waterproof electric cabinet which can design to button or touch screen operation.

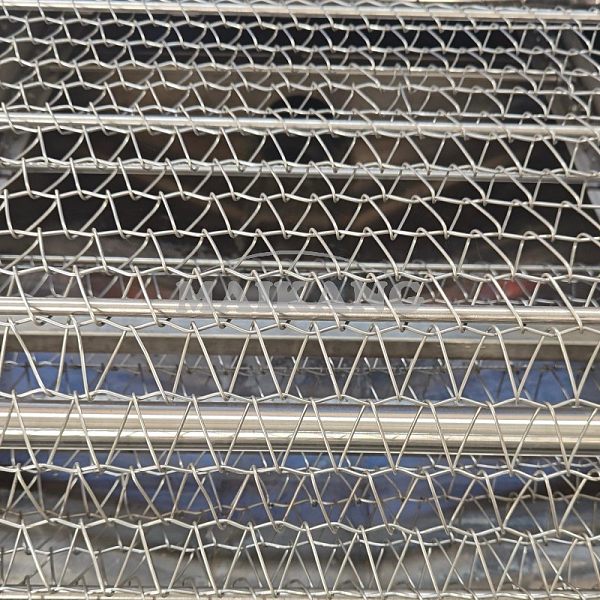

  • Using SUS304 mesh chain to transport the egg trays, and equipped with guide rob to clamp.
    Using SUS304 mesh chain to transport the egg trays, and equipped with guide rob to clamp.
