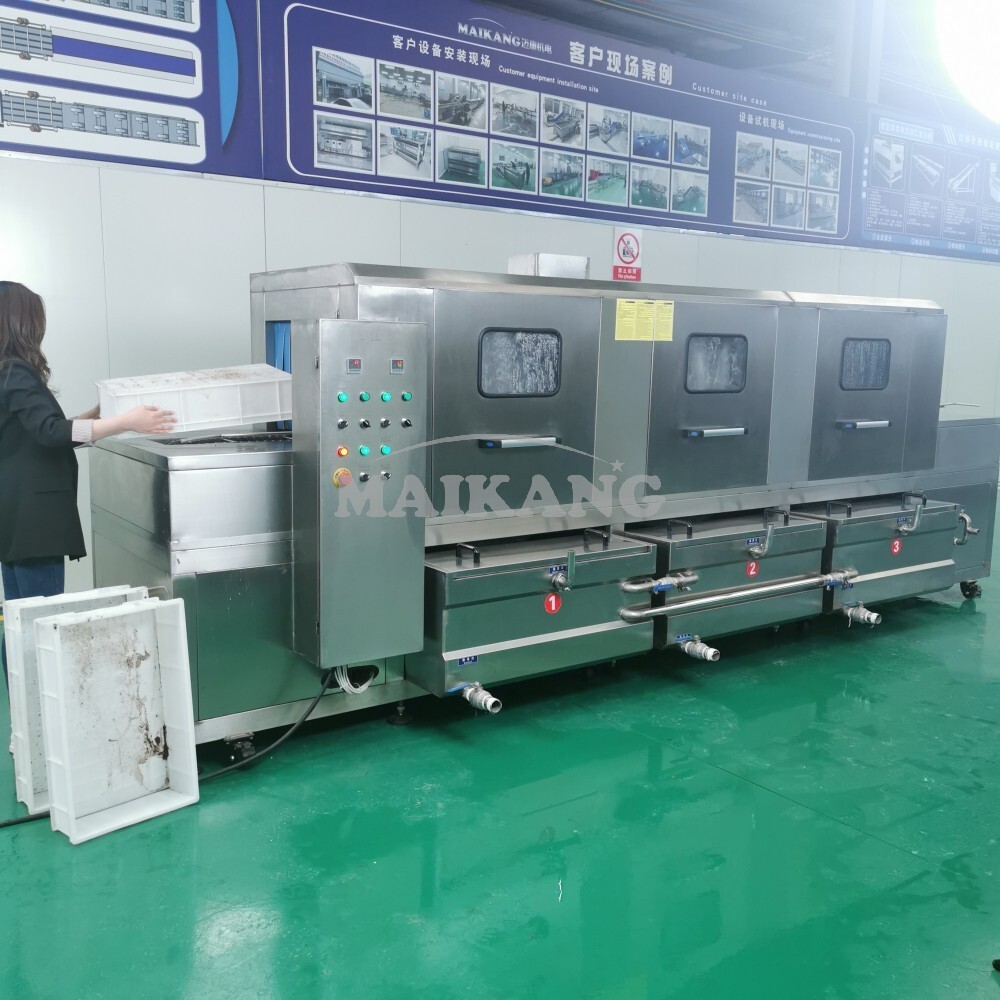

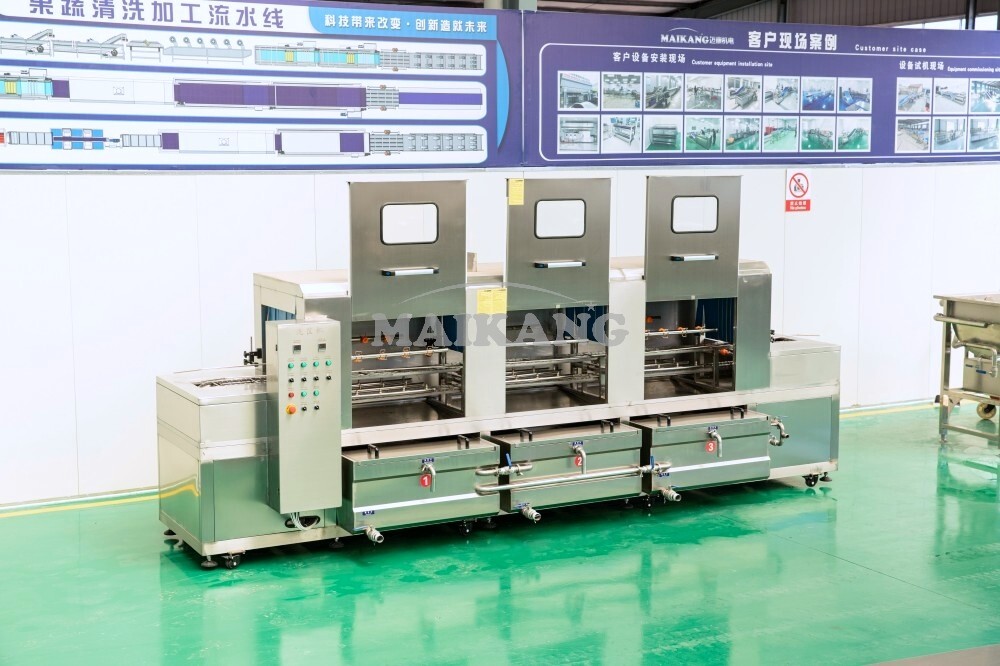

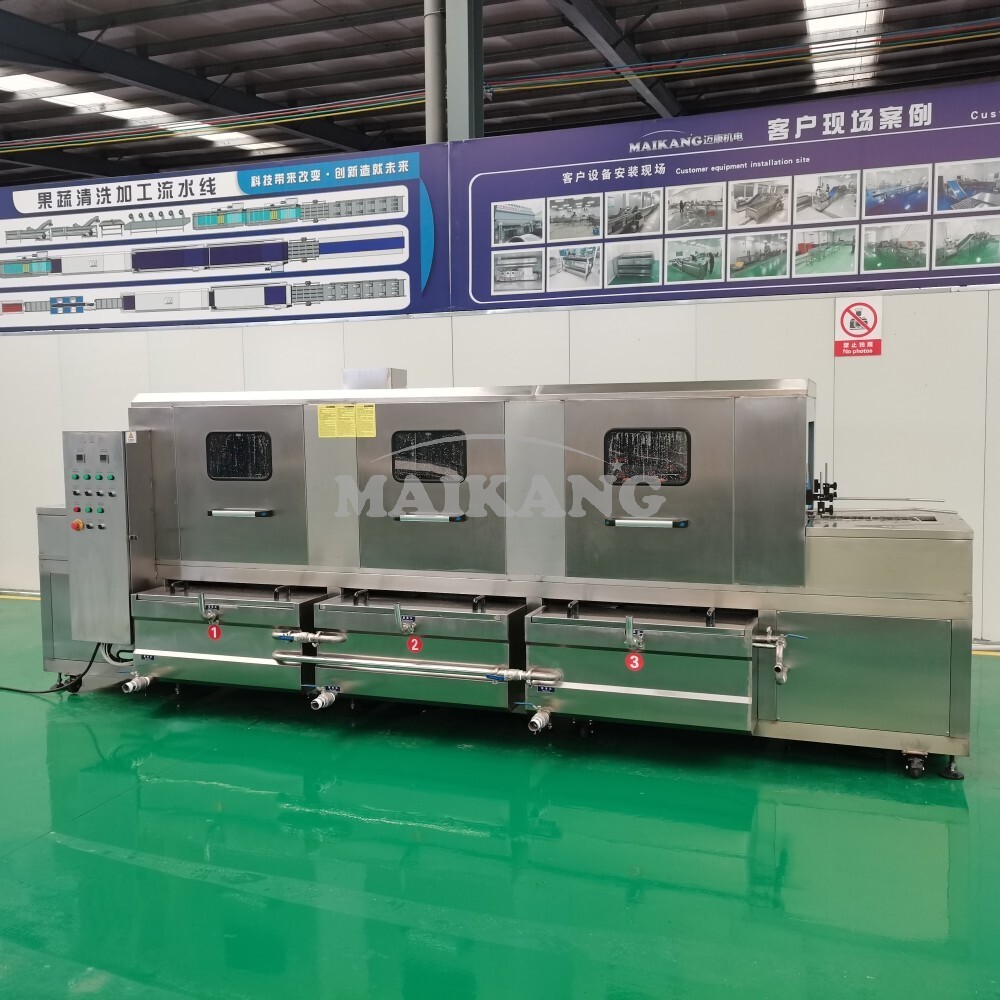

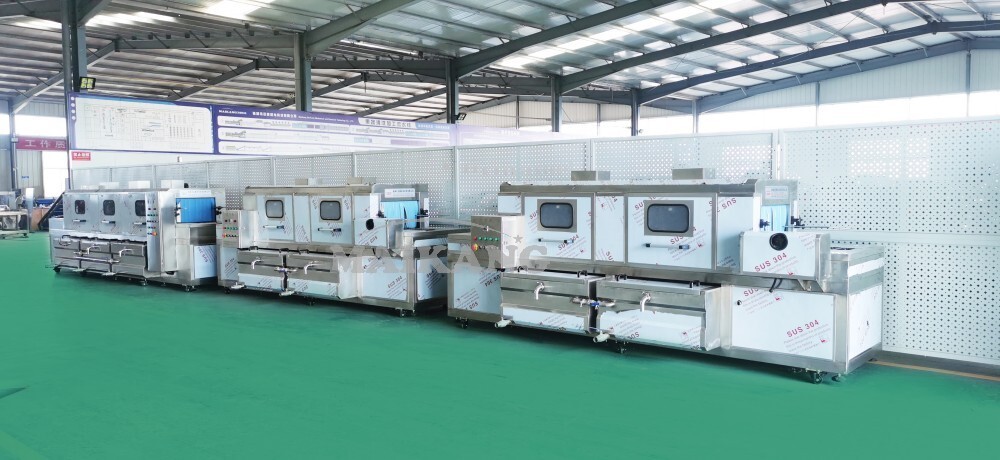

Crate Washing Machine

Crate Washer Machine is a good helper to save labor cost. The whole body material is SUS304 which is durable and stable, meets the food hygiene requirement.
There are three washing sections: the first and second is hot water( design the electric heat pipes in the water tanks)to wash crates, if the crates are too dirty, can add soda/detergent into the first water tank directly to clean, the third is home temperature to rinse it. We can also design the drying part to blow the big drops of water which can remove most of moisture, if you need.
7*24-Hour Service
After Sales Service
Full Range
WhatsApp: +86 15063652160
E-mail: ivy@cnmaikang.com
Contact us
Get a Quote

Product Details

▶ The cleaning process consists of three stages

Pre-washing, main washing, and rinsing. Crates to be cleaned are fed into the washing channel from the inlet, where high-pressure nozzles spray them from multiple angles to thoroughly remove grease and residues. Wastewater is separated and recycled through a filtration system, while debris is automatically discharged. The rinsing section uses room temperature water to completely eliminate cleaning agents, ensuring the crates are clean and hygienic.

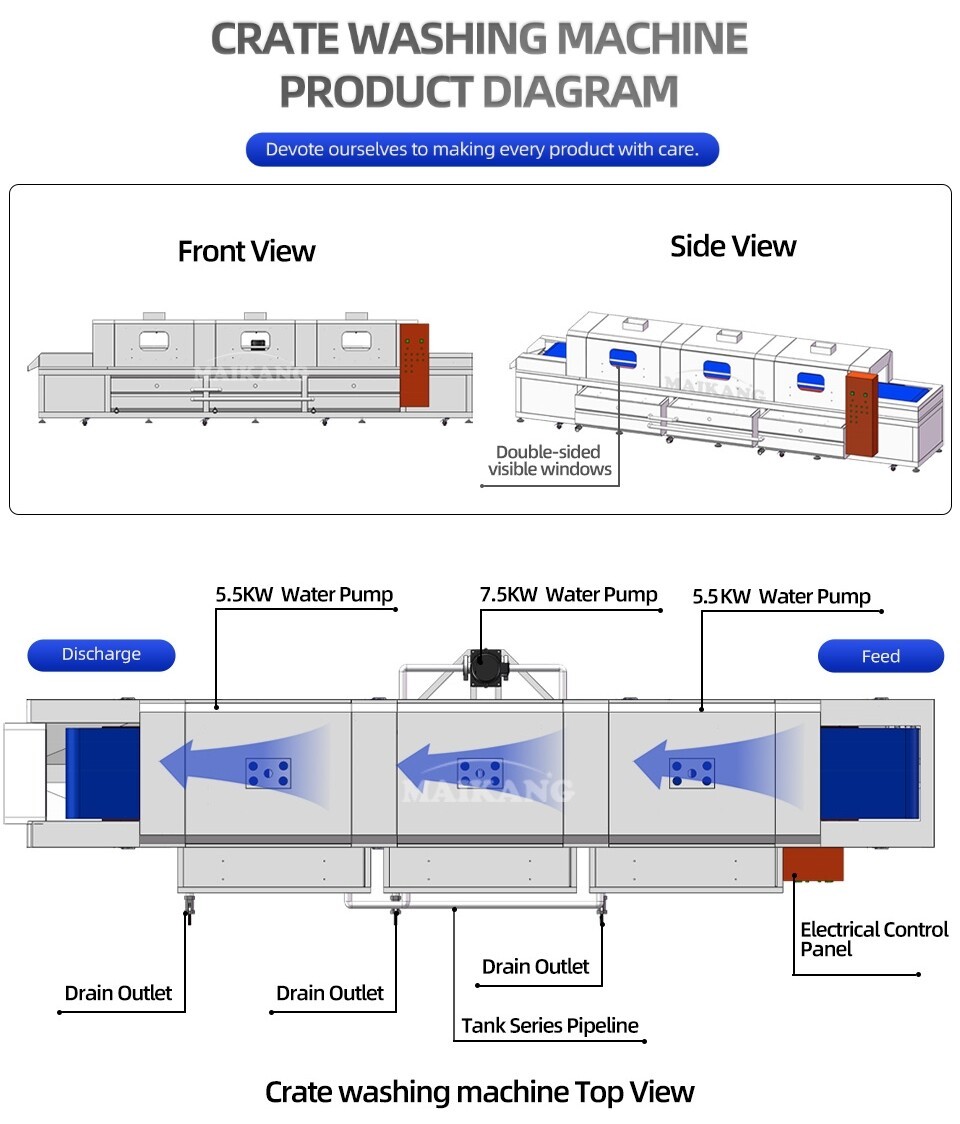

img@1x (3)


▶ Parameter


Product NameCrate Washer
Place of OriginShandong, China
Capacity300-400pcs/ hour
Square Tube40*80mm, 2.0mm thickness
MaterialSUS 304
Power Supply380V/50Hz (can be customized)
Overall Dimensions6000*1700*1850mm (Three-stage cleaning)
Water Pump5.5 KW + 7.5 KW + 5.5 KW (Chinese famous brand)
Tank Heating Element18 KW * 2 tanks (electric heating pipe)
Drive Motor1.5 KW frequency conversion speed regulation


▶ Working Principle


The working principle of a crate washing machine is a typical industrial cleaning process that combines mechanical, hydraulic, and thermal principles. Its core objective is to efficiently and automatically remove grease, food residues, dust, and other contaminants from turnover crates/baskets.


▶ The Advantages of Crate Washer


✔ Water Savings: Up to 70% water usage reduction compared to traditional methods.
✔ Labor Savings: Can save 7-8 personnel compared to manual cleaning methods.

Tips: we can provide the suitable solution based on your item, capacity and requirements. Please feel free to contact us.

Equipment Details Display

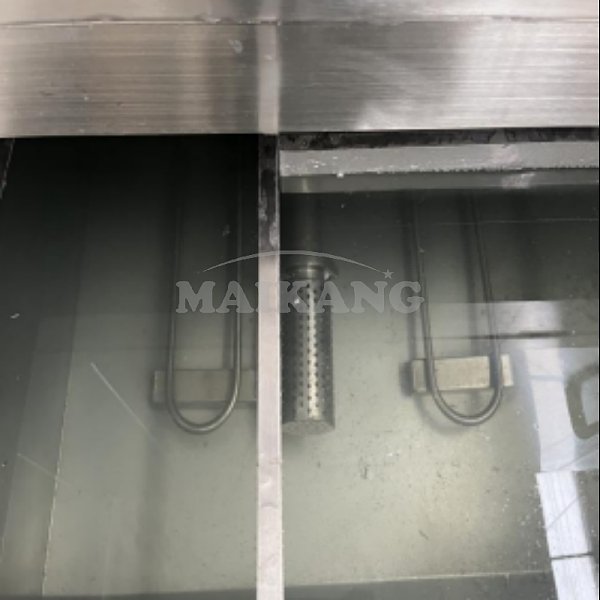

  • Water tank with electric heat pipes and filters, the electric heat pipes are in the first and second water tanks. Each tank of water is single recycling.
    Water tank with electric heat pipes and filters, the electric heat pipes are in the first and second water tanks. Each tank of water is single recycling.

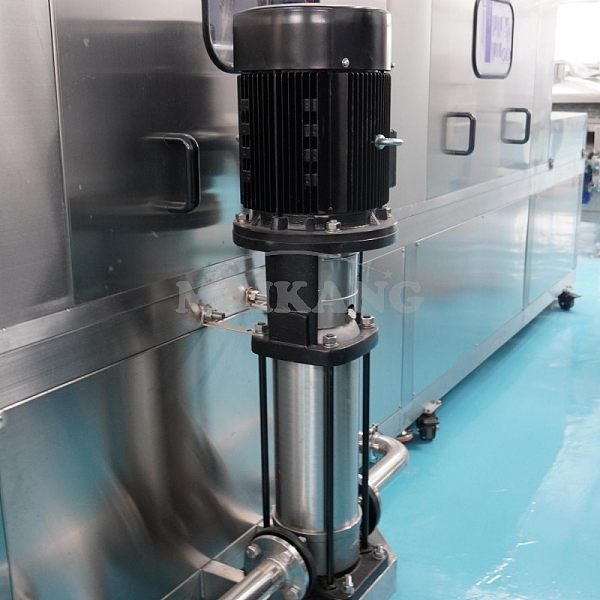

  • Using high pressure water pumps to wash crates, usually the first and third station is horizontal water pump while the second is vertical one.
    Using high pressure water pumps to wash crates, usually the first and third station is horizontal water pump while the second is vertical one.

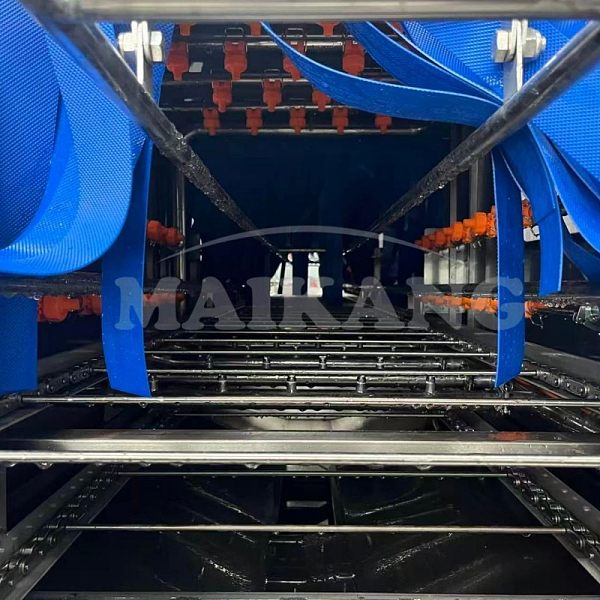

  • The nozzles spray a fan-shaped water curtain to deliver a powerful, all-around wash to the crates, ensuring no blind spots.
    The nozzles spray a fan-shaped water curtain to deliver a powerful, all-around wash to the crates, ensuring no blind spots.

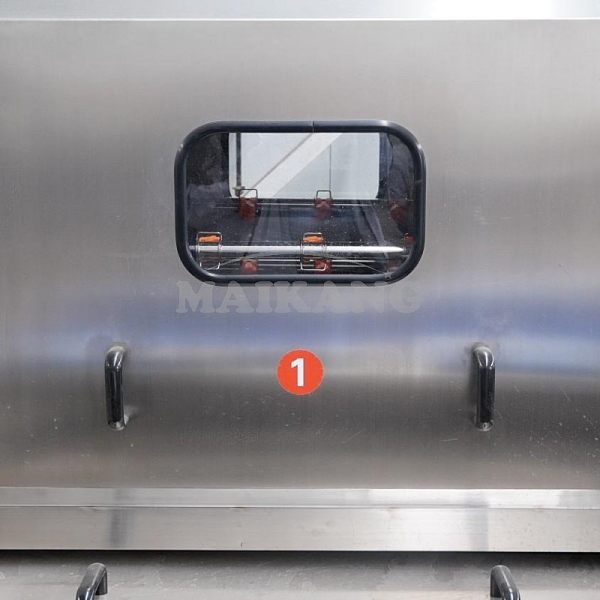

  • Removable panel with visible window which is easy to observe crates washing processing and maintain.
    Removable panel with visible window which is easy to observe crates washing processing and maintain.
  • 20405ea5a5840010a9bad344213546dd

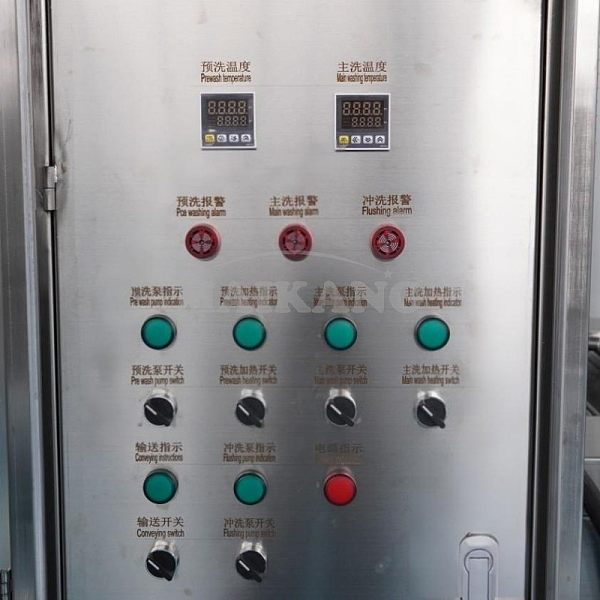

    Waterproof electric cabinet which can design to button or touch screen operation.
  • Using SUS304 pintle chain to transport the crates, and equipped with guide rob to clamp.
    Using SUS304 pintle chain to transport the crates, and equipped with guide rob to clamp.
