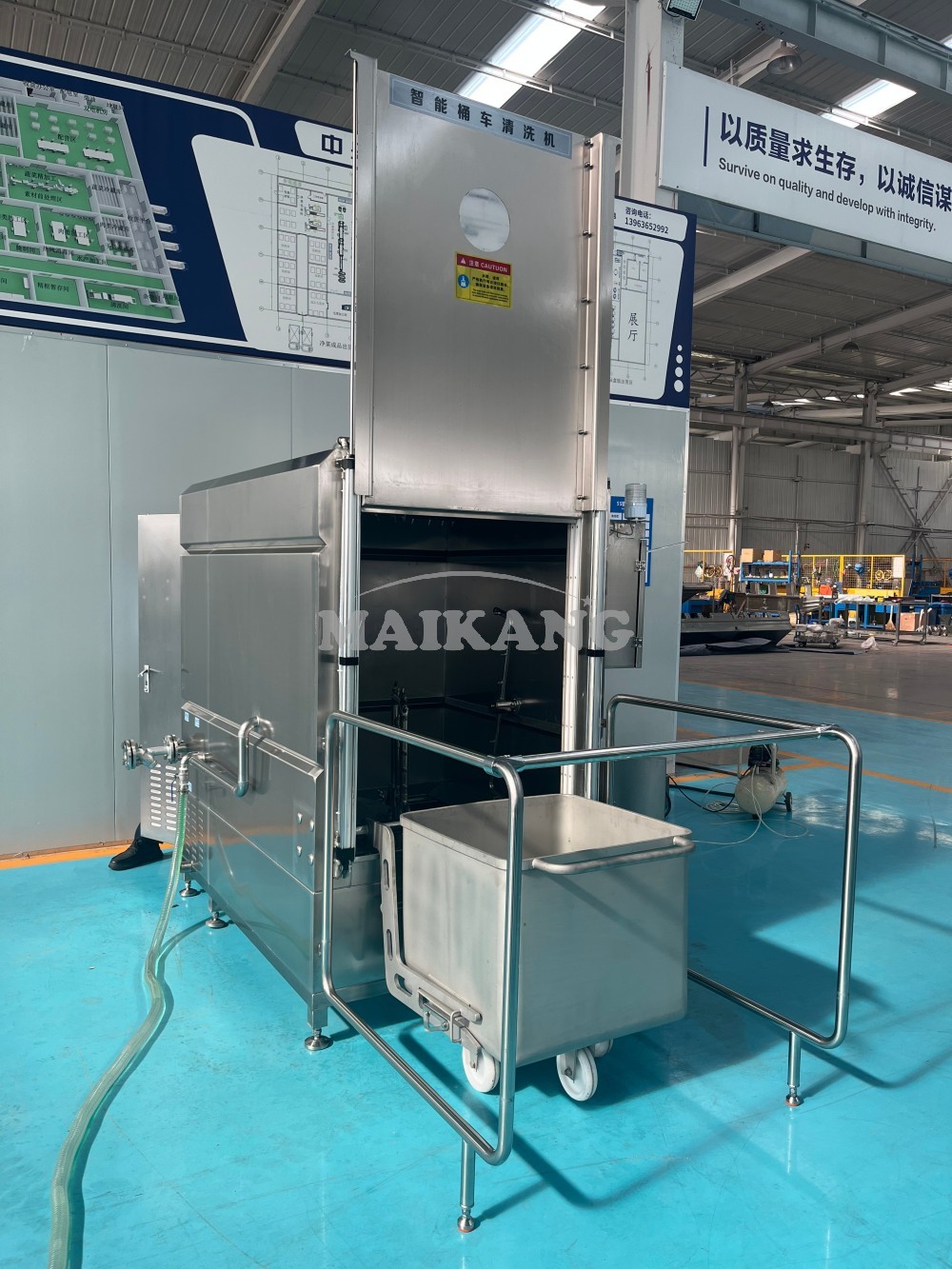

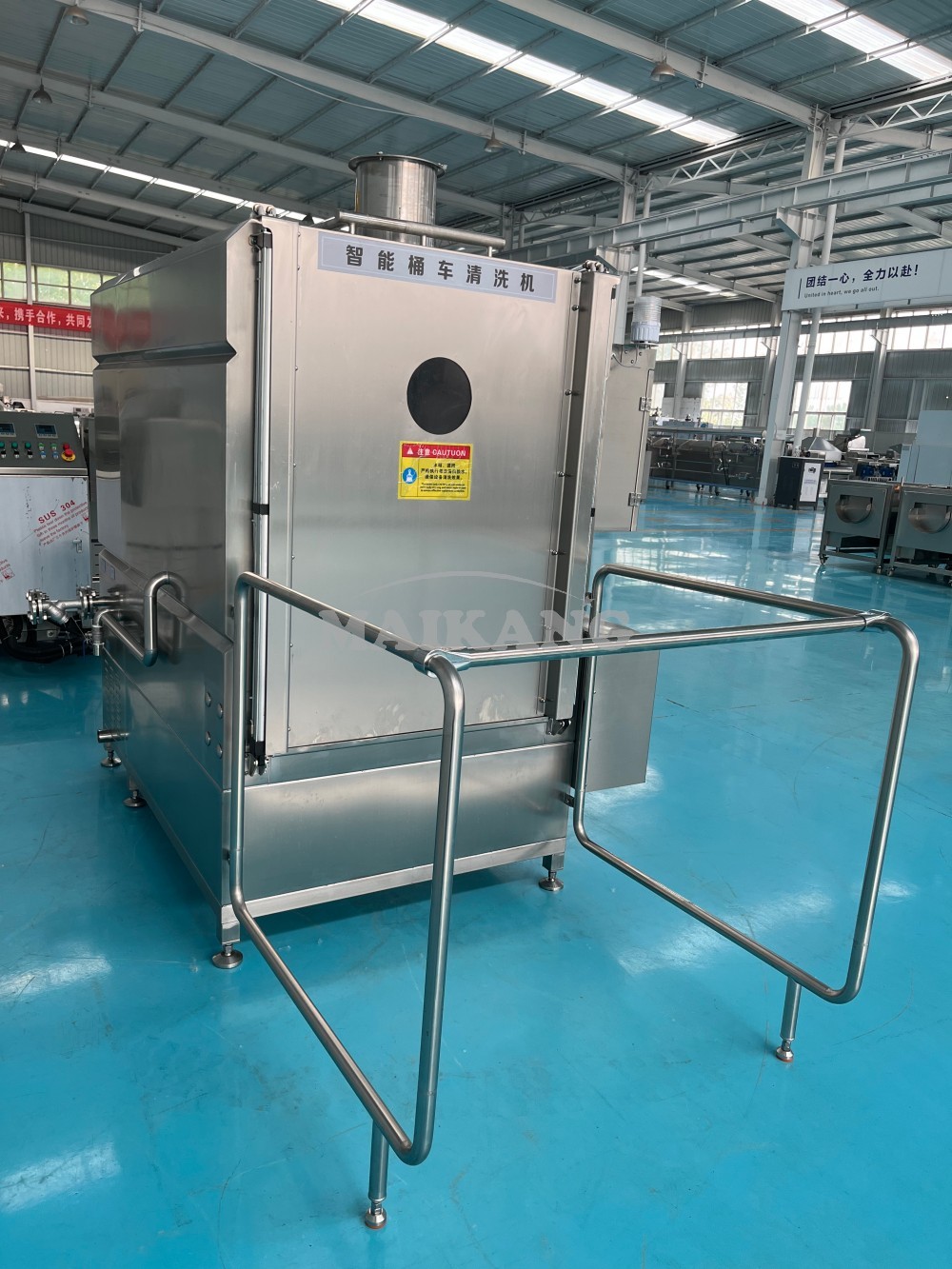

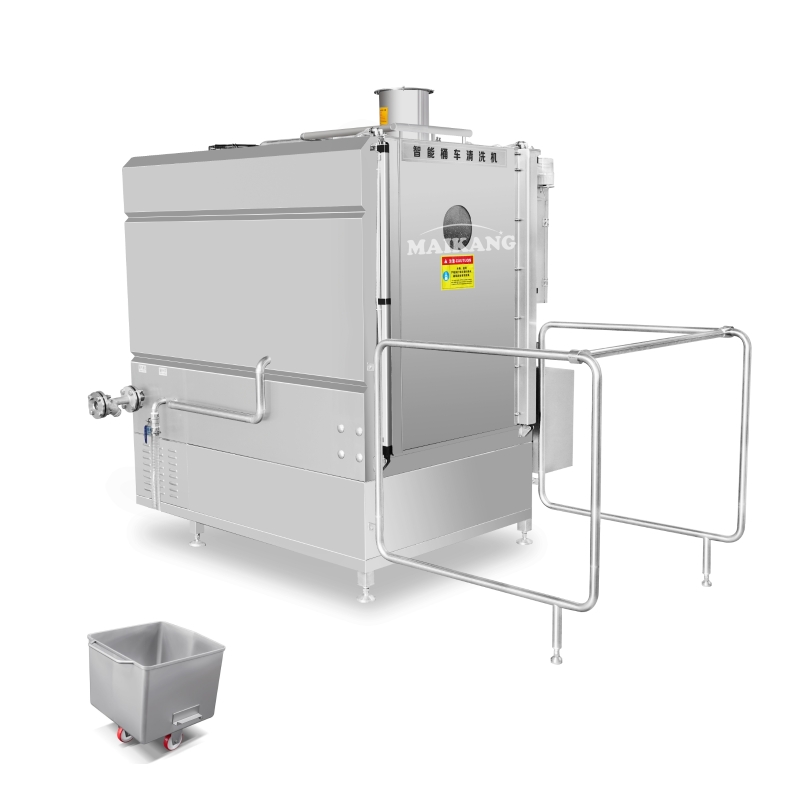

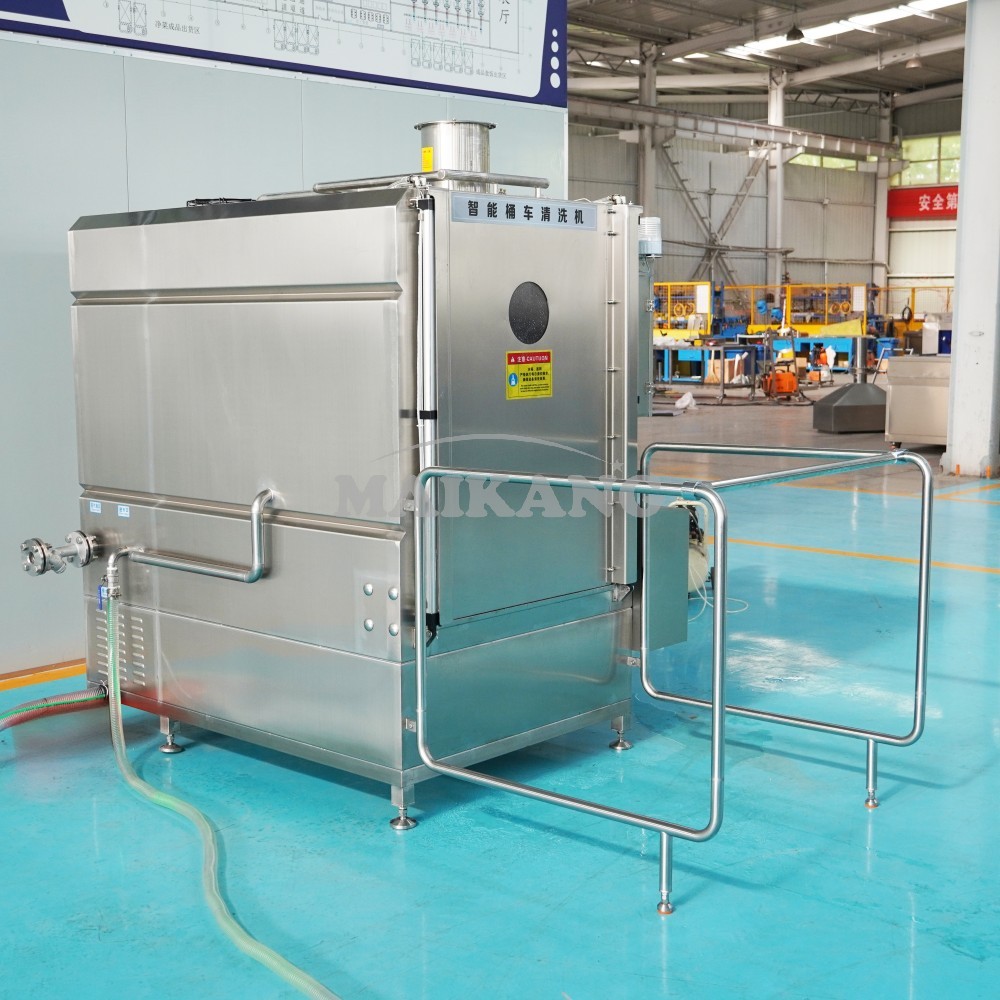

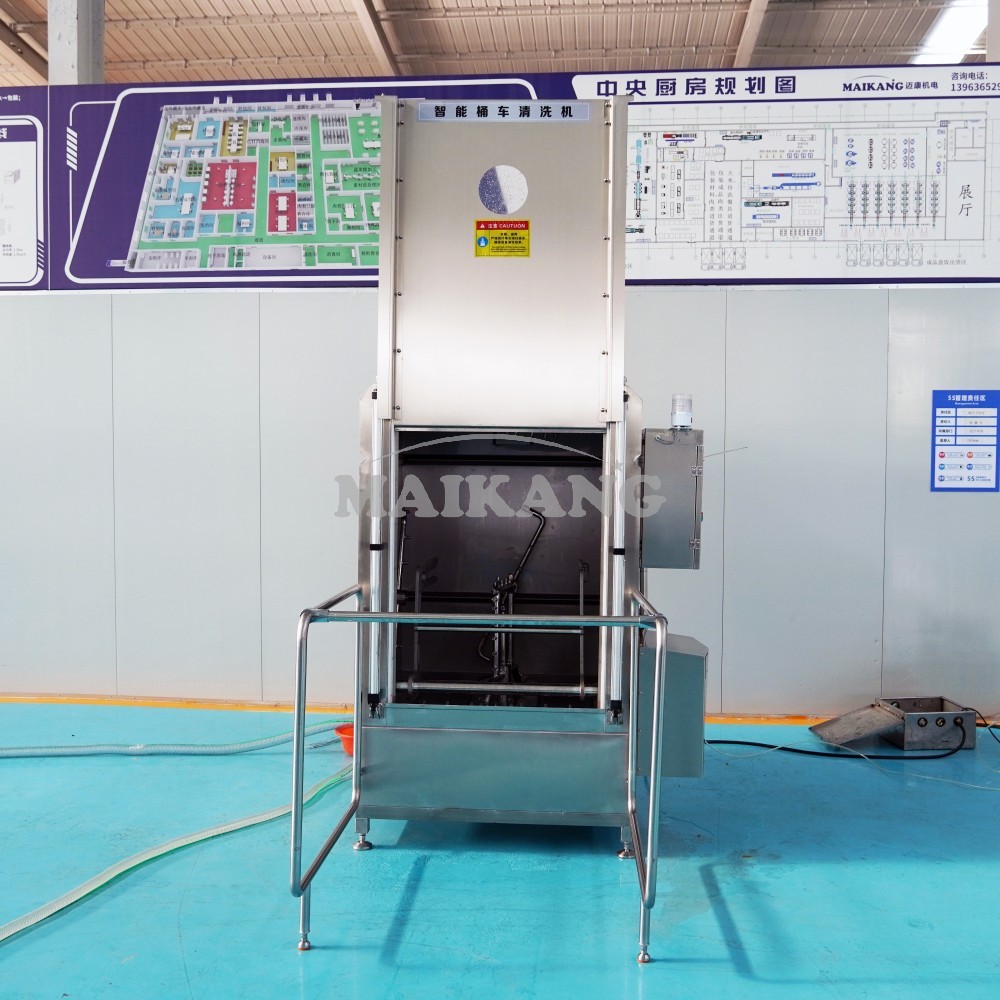

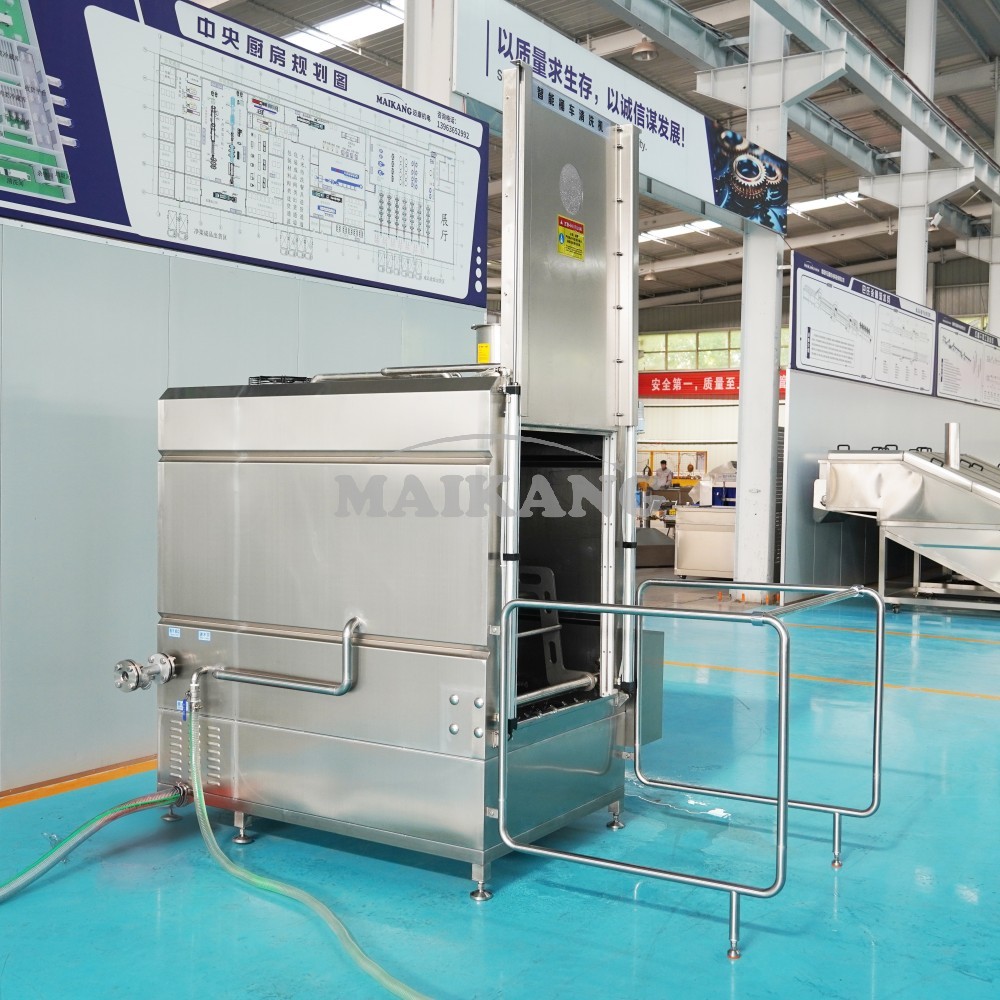

Eurobin Washing Machine

▶ Working Principle

The washer operates on a combined mechanism of high-pressure spraying + heat + detergent. The typical process is as follows:

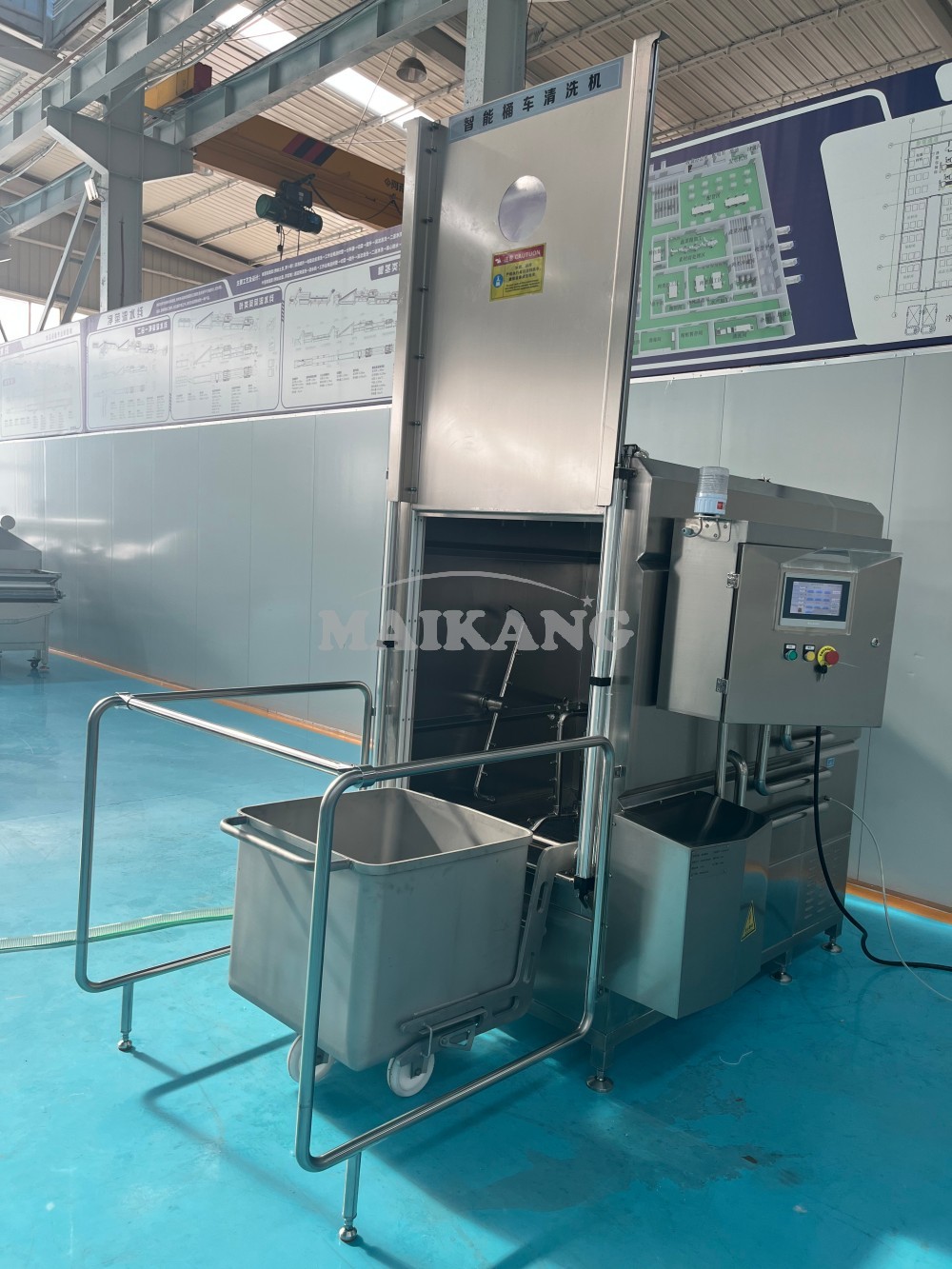

Loading – The operator pushes the dirty trolley onto the loading position. The machine flips and fixes the bin (180° inversion) or moves it into the sealed washing chamber.

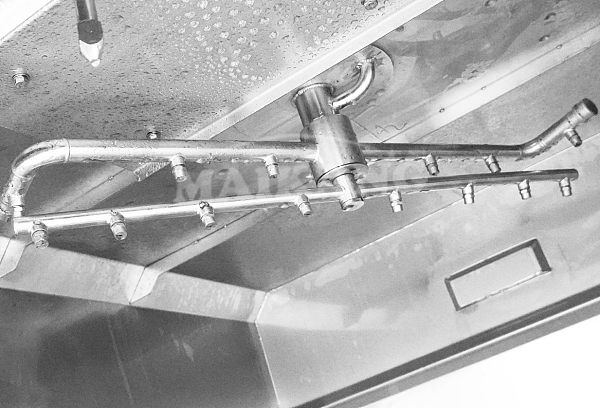

Spray cleaning – High-pressure hot water (approx. 80°C) is sprayed through rotating nozzles from multiple angles, thoroughly cleaning both the interior and exterior surfaces of the bin.

Detergent action – Automatic dosing pumps add detergent to the hot water, softening and removing grease, protein residues, and dirt.

Multi-stage washing – Most machines offer two-stage cleaning: hot detergent wash followed by fresh hot water rinse.

Unloading – After the cycle, the bin automatically returns to its upright position, ready for removal. The entire process is controlled with one button.

▶ Parameter

▶ Key Advantages

✔ Efficient & Intelligent Cleaning

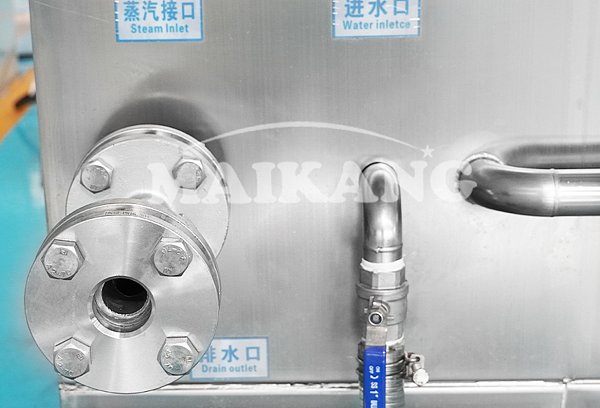

Each bin is washed independently with automatic temperature control. The system supports both electric heating and steam heating, offering high efficiency and flexibility for different working conditions.

✔ Hygienic & Durable Construction

Made of solid 304 stainless steel plates and profiles (2 mm thickness, welded and folded). The structure is easy to clean and highly hygienic. The slanted tank bottom ensures quick drainage. All key components (pump, spray arms, dosing pump) are enclosed and accessible through removable hatches.

✔ Automatic Operation with Consistent Results

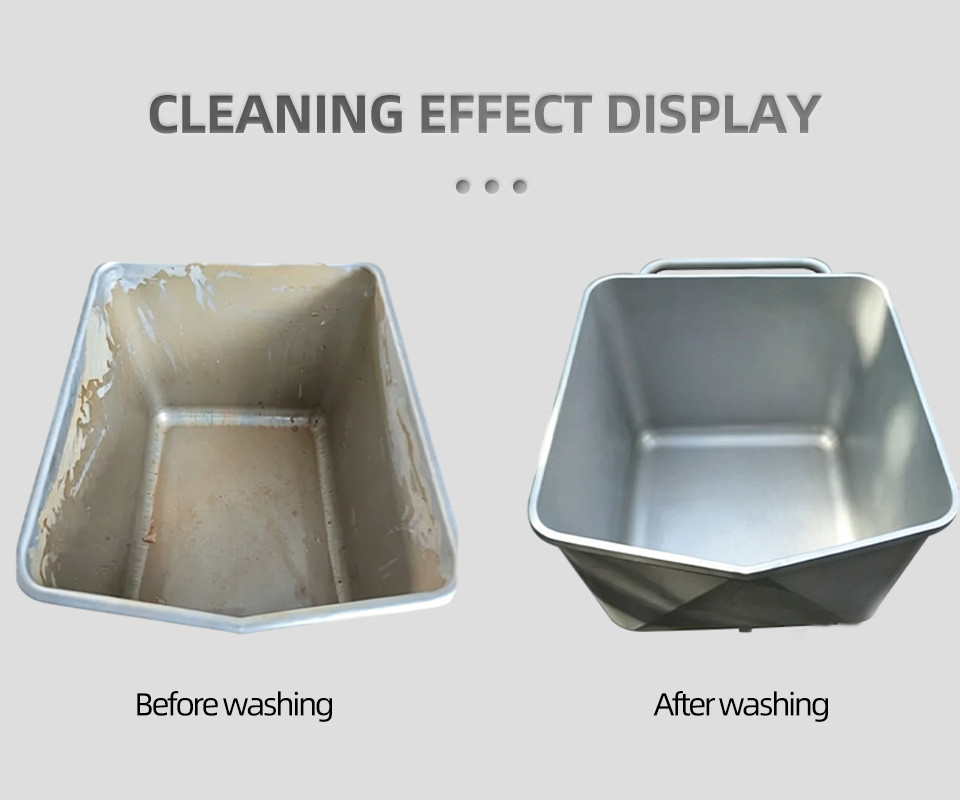

High-pressure water jets, combined with heat and detergent, thoroughly remove dirt and residues. After cleaning, the euro bin automatically returns to its position, ensuring consistent, time-saving operation.

✔ Adjustable Control Panel

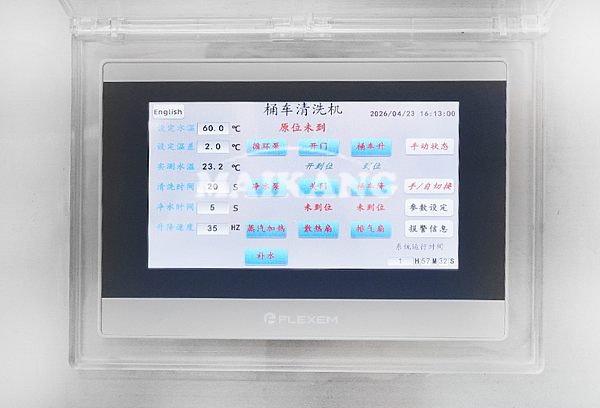

The PLC control panel (e.g., Siemens 7-inch touch screen) allows operators to easily set and adjust cleaning time, water temperature, and detergent dosage according to actual needs, enabling flexible and precise operation.

✔ Water & Energy Saving

Closed-loop water circulation with filtration significantly reduces water consumption. Precise detergent dosing avoids chemical waste. Thermal insulation and heat recovery further reduce operating costs.

✔ Easy Maintenance & No Dead Corners

Modular design, quick-release piping connections, sealed and maintenance-free bearings, and accessible inspection hatches make cleaning and servicing simple.
